  1. Home
  2. /Bearings
  3. /NSK 51100 Thrust Ball Bearing
NSK

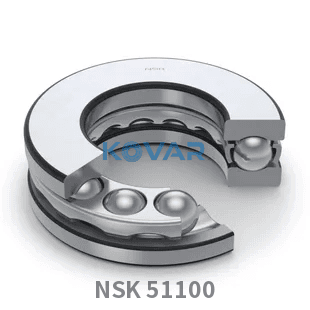

NSK 51100 NSK 51100 Thrust Ball Bearing
  • NSK 51100 NSK 51100 Thrust Ball Bearing

NSK

NSK 51100 Thrust Ball Bearing 10 × 24 × 9 mm

Axial deep groove ball bearing

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SC5CMD1WMG
Category
Thrust Ball Bearing
Bore
10 mm
Outer Ø
24 mm
Width
9 mm

Overview

The NSK 51100 is a plain thrust ball bearing with no suffix, 10 × 24 × 9 mm (bore × OD × width).

The same specification also comes in an adjacent size: 51101 (12 mm bore). Parts from other brands with the same dimensions as the 51100 include FAG 51100, KOYO 51100, NTN 51100, SKF 51100; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.019 kgWeight
Cr10100 NBasic dynamic load rating, radial
C0r14000 NBasic static load rating, radial

Dimensions

SymbolValueDescription
d10 mmBore diameter
D24 mmOutside diameter
B9 mmWidth

Related Parts

CodeDescription
Standard bearing steelMaterial
Sheet steel cageCage
Tolerance class P0/PN2 / ABEC 1Tolerance class

Product description

NSK 51100 Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.

The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.

Key features

  • ·Dedicated axial load support
  • ·Simple structure with low friction
  • ·Single- and double-direction designs
  • ·Separable components for easy mounting and inspection

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to NSK 51100

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
