  1. Home
  2. /Bearings
  3. /NSK 6902 Deep Groove Ball Bearing
NSK

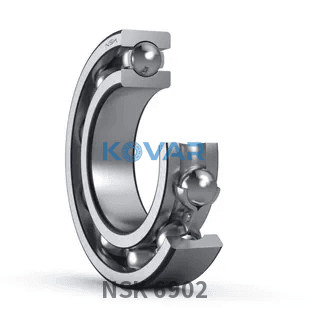

NSK 6902 NSK 6902 Deep Groove Ball Bearing
  • NSK 6902 NSK 6902 Deep Groove Ball Bearing

NSK

NSK 6902 Deep Groove Ball Bearing 15 × 28 × 7 mm

Deep Groove Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SCZZ8X48C1
Category
Deep Groove Ball Bearing
Bore
15 mm
Outer Ø
28 mm
Width
7 mm

Overview

The NSK 6902 is a plain deep groove ball bearing with no suffix, 15 × 28 × 7 mm (bore × OD × width).

Kovar lists 21 NSK variants in the 15×28×7 mm size; the closest to the 6902 are 6902C3 (internal clearance C3), 6902NR (snap ring groove in the outer ring, with snap ring), 6902VV (non-contact rubber seals on both sides).

The same specification comes one size down as 6901 (12 mm bore) and one size up as 6903 (17 mm bore). Parts from other brands with the same dimensions as the 6902 include KOYO 6902, NTN 6902Z, RBC 9302K; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.015 kgWeight
Cr4.75 kNBasic dynamic load rating, radial
C0r2.26 kNBasic static load rating, radial
nϑr26,000 rpmReference speed

Dimensions

SymbolValueDescription
d15 mmBore diameter
D28 mmOutside diameter
B7 mmWidth
r0.3 mmChamfer Dimension, min. (r)

Temperature Range

SymbolValueDescription
Tmin-20 °COperating temperature min.
Tmax120 °COperating temperature max.

Related Parts

CodeDescription
P0Tolerance class
Sheet steel cageCage
Cylindrical boreBore type
Standard bearing steelMaterial

Product description

NSK 6902 Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.

The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.

Key features

  • ·Highly versatile standard bearing type
  • ·Low friction and stable high-speed rotation
  • ·Supports radial load and moderate bidirectional axial load
  • ·Available in open, shielded, and sealed designs

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to NSK 6902

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
