  1. Home
  2. /Bearings
  3. /NTN 16005 Deep Groove Ball Bearing
NTN

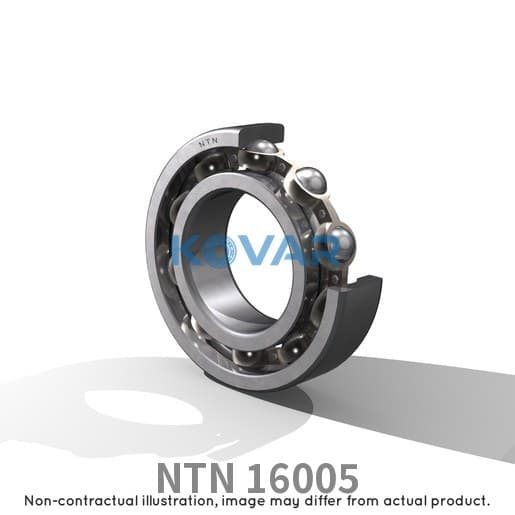

NTN 16005 NTN 16005 Deep Groove Ball Bearing
  • NTN 16005 NTN 16005 Deep Groove Ball Bearing

NTN

NTN 16005 Deep Groove Ball Bearing 25 × 47 × 8 mm

Deep Groove Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FX5CK0ZCVG
Category
Deep Groove Ball Bearing
Bore
25 mm
Outer Ø
47 mm
Width
8 mm

Overview

NTN 16005: a plain deep groove ball bearing with no suffix measuring 25 × 47 × 8 mm (bore × OD × width).

Kovar lists 2 NTN variants in the 25×47×8 mm size; the closest to the 16005 are 16005C2U38.

The same specification comes one size down as 16004 (20 mm bore) and one size up as 16006 (30 mm bore). Looking for the 16005 size from another brand? Options include FAG 16005, IBC 16005, KOYO 16005, NSK 16005 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m0.06 kgWeight
Cr9.25 kNBasic dynamic load rating, radial
C0r5.1 kNBasic static load rating, radial
Cur0.4 kNFatigue load limit, radial
nG18,000 rpmLimiting speed
nϑr15,000 rpmReference speed

Dimensions

SymbolValueDescription
d25 mmBore diameter
D47 mmOutside diameter
B8 mmWidth

Temperature Range

SymbolValueDescription
Tmin-40 °COperating temperature min.
Tmax120 °COperating temperature max.

Related Parts

CodeDescription
P0Tolerance class
Sheet steel cageCage
Cylindrical boreBore type
CNRadial clearance group
Standard bearing steelMaterial

Product description

NTN 16005 Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.

The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.

Key features

  • ·Highly versatile standard bearing type
  • ·Low friction and stable high-speed rotation
  • ·Supports radial load and moderate bidirectional axial load
  • ·Available in open, shielded, and sealed designs

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Official Catalog

Excerpt from the manufacturer's official catalog — NTN CAT.2203E — Ball and Roller Bearings

NTN CAT.2203E — Ball and Roller Bearings
📖View original catalog PDF

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to NTN 16005

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
