NTN
Deep Groove Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

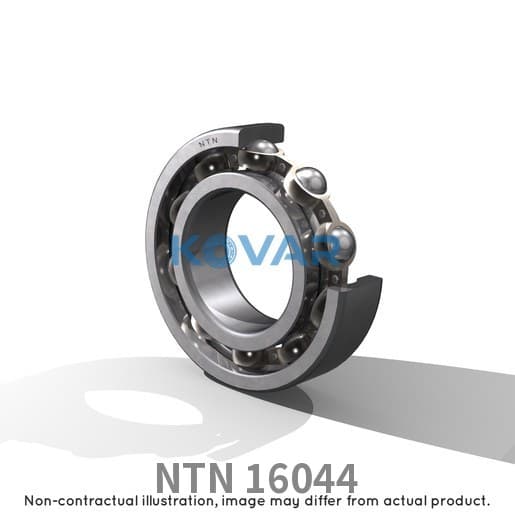

The NTN 16044 is a plain deep groove ball bearing with no suffix, 220 × 340 × 37 mm (bore × OD × width).
Kovar lists 2 NTN variants in the 220×340×37 mm size; the closest to the 16044 are 16044C3 (internal clearance C3).
The same specification comes one size down as 16040 (200 mm bore) and one size up as 16048 (240 mm bore). Parts from other brands with the same dimensions as the 16044 include FAG 16044, IBC 16044, KOYO 16044, NSK 16044M; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 11.3 kg | Weight |
| Cr | 200000 N | Basic dynamic load rating, radial |
| C0r | 216000 N | Basic static load rating, radial |
| Cu | 8650 N | Fatigue Load Limit (Cu) |
| f0 | 16.5 | Calculation factor |
| Nlim | 2200 rpm | Limiting Speed, Oil |
| Nlim | 1800 rpm | Limiting Speed, Grease |
| Tmax | 120 °C | Max. Operating Temp |
| Symbol | Value | Description |
|---|---|---|
| d | 220 mm | Bore diameter |
| D | 340 mm | Outside diameter |
| B | 37 mm | Width |
| r | 2.1 mm | Chamfer Dimension (r) |
| Code | Description |
|---|---|
| CN | Radial clearance group |
| Standard bearing steel | Material |
| Sheet steel cage | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
NTN 16044 Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.
The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
