  1. Home
  2. /Bearings
  3. /NTN 2202S Self-Aligning Ball Bearing
NTN

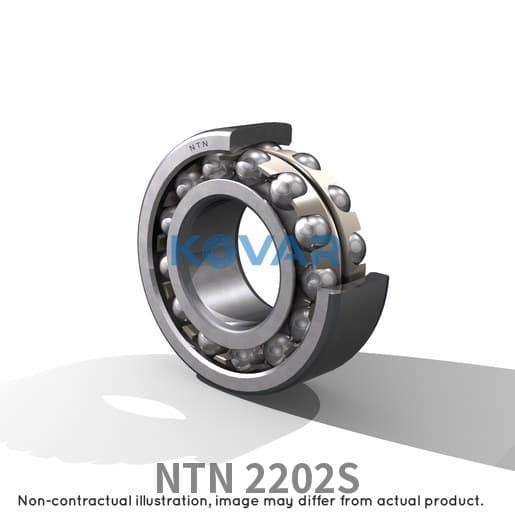

NTN 2202S NTN 2202S Self-Aligning Ball Bearing
  • NTN 2202S NTN 2202S Self-Aligning Ball Bearing

NTN

NTN 2202S Self-Aligning Ball Bearing 15 × 35 × 14 mm

Self-Aligning Ball Bearing

RFQ

Estimated delivery: 29 Nov 2026 (domestic stock)

In stockEstimated delivery: 29 Nov 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWX3PQZ4RP
Category
Self-Aligning Ball Bearing
Bore
15 mm
Outer Ø
35 mm
Width
14 mm

Overview

The NTN 2202S is a self-aligning ball bearing, 15 × 35 × 14 mm (bore × OD × width).

Kovar lists 2 NTN variants in the 15×35×14 mm size; the closest to the 2202S are 2202 (plain).

Parts from other brands with the same dimensions as the 2202S include FAG 22022RS, KOYO 2202, NSK 2202, SKF 2202; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.058 kgWeight
Cr7800 NBasic dynamic load rating, radial
C0r1850 NBasic static load rating, radial
Cu95 NFatigue Load Limit (Cu)
e0.5Calculation factor
Nlim22000 rpmLimiting Speed, Oil
Nlim18000 rpmLimiting Speed, Grease
Tmin-20 °CMin. Operating Temp
Tmax120 °CMax. Operating Temp

Dimensions

SymbolValueDescription
d15 mmBore diameter
D35 mmOutside diameter
B14 mmWidth
r0.6 mmChamfer Dimension (r)

Related Parts

CodeDescription
CNRadial clearance group
Standard bearing steelMaterial
Sheet steel cageCage
Tolerance class P0/PN2 / ABEC 1Tolerance class

Product description

NTN 2202S Self-Aligning Ball Bearing uses two rows of balls and a spherical outer ring raceway to compensate for shaft misalignment. It provides low-friction rotation in fans, conveyors, textile machines, and long-shaft arrangements with mounting or housing deviations.

Two rows of balls are guided by a cage on the inner ring, while the outer ring has a spherical raceway. The design absorbs angular misalignment between shaft and housing while maintaining low friction at moderate to high speeds.

Key features

  • ·Self-aligning function for angular misalignment
  • ·Low friction for stable medium- to high-speed operation
  • ·Suitable for long shafts and deflection-prone positions
  • ·Available in open and sealed variants

Typical applications

  • ·Fans and blowers
  • ·Conveyor shafts
  • ·Textile machinery
  • ·Agricultural and general machinery

Selection guidance

Check expected misalignment, load, sealing needs, internal clearance, and available mounting space.

Official Catalog

Excerpt from the manufacturer's official catalog — NTN CAT.2203E — Ball and Roller Bearings

NTN CAT.2203E — Ball and Roller Bearings
📖View original catalog PDF

Datasheet

📄datasheet pdf download

RFQ

Estimated delivery: 29 Nov 2026 (domestic stock)

Same size as NTN 2202S, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
