NTN
Deep Groove Ball Bearing
RFQ
Estimated delivery: 29 Nov 2026 (domestic stock)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

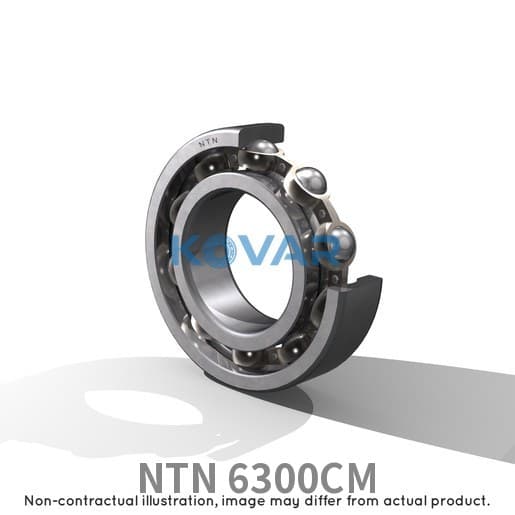

The NTN 6300CM is a deep groove ball bearing with internal clearance CM (electric motor), 10 × 35 × 11 mm (bore × OD × width).
Kovar lists 37 NTN variants in the 10×35×11 mm size; the closest to the 6300CM are 6300C3 (internal clearance C3), 6300C4 (internal clearance C4), 6300 (plain).
The same specification also comes in an adjacent size: 6301CM (12 mm bore). Parts from other brands with the same dimensions as the 6300CM include FAG 6300, IBC 6300, KBC 6300DD, KOYO 6300CM; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.053 kg | Weight |
| Cr | 9100 N | Basic dynamic load rating, radial |
| C0r | 3500 N | Basic static load rating, radial |
| Cu | 273 N | Fatigue Load Limit (Cu) |
| f0 | 11.4 | Calculation factor |
| Nlim | 27000 rpm | Limiting Speed, Oil |
| Nlim | 23000 rpm | Limiting Speed, Grease |
| Tmin | -40 °C | Min. Operating Temp |
| Tmax | 120 °C | Max. Operating Temp |
| Symbol | Value | Description |
|---|---|---|
| d | 10 mm | Bore diameter |
| D | 35 mm | Outside diameter |
| B | 11 mm | Width |
| r | 0.6 mm | Chamfer Dimension (r) |
| Code | Description |
|---|---|
| CM | Radial clearance group |
| Standard bearing steel | Material |
| Sheet steel cage | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
NTN 6300CM Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.
The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
RFQ
Estimated delivery: 29 Nov 2026 (domestic stock)
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
