NTN AS210D1 Radial Insert Ball Bearing Adapter Sleeve 50 × 90 × 42 mm
Radial insert ball b.
Adapter Sleeve
RFQ
In stock
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Adapter Sleeve
- Bore
- 50 mm
- Outer Ø
- 90 mm
- Width
- 42 mm
Overview
NTN AS210D1 Adapter Sleeve is a mounting accessory used to secure tapered-bore bearings on cylindrical shafts. It simplifies installation and removal of spherical roller and self-aligning ball bearings, reducing shaft machining complexity and maintenance time.
It consists of a tapered sleeve, locknut, and lock washer or locking device. Tightening the nut drives the bearing inner ring onto the taper and clamps it to the shaft.
Key features
- Mounts tapered-bore bearings on cylindrical shafts
- Reduces shaft machining cost
- Simplifies installation and removal
- Helps adjust bearing internal clearance
Typical applications
- Spherical roller bearing mounting
- Fans and conveyor pulleys
- Paper and steel equipment
- General industrial shafts
Selection guidance
Verify bearing bore taper, shaft diameter, sleeve series, locknut size, and residual clearance after mounting.
| Symbol | Value | Description |
|---|---|---|
| d | 50 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| B | 42 mm | Width |
| Code | Description |
|---|---|
| Standard bearing steel | Material |
| Sheet steel cage | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |

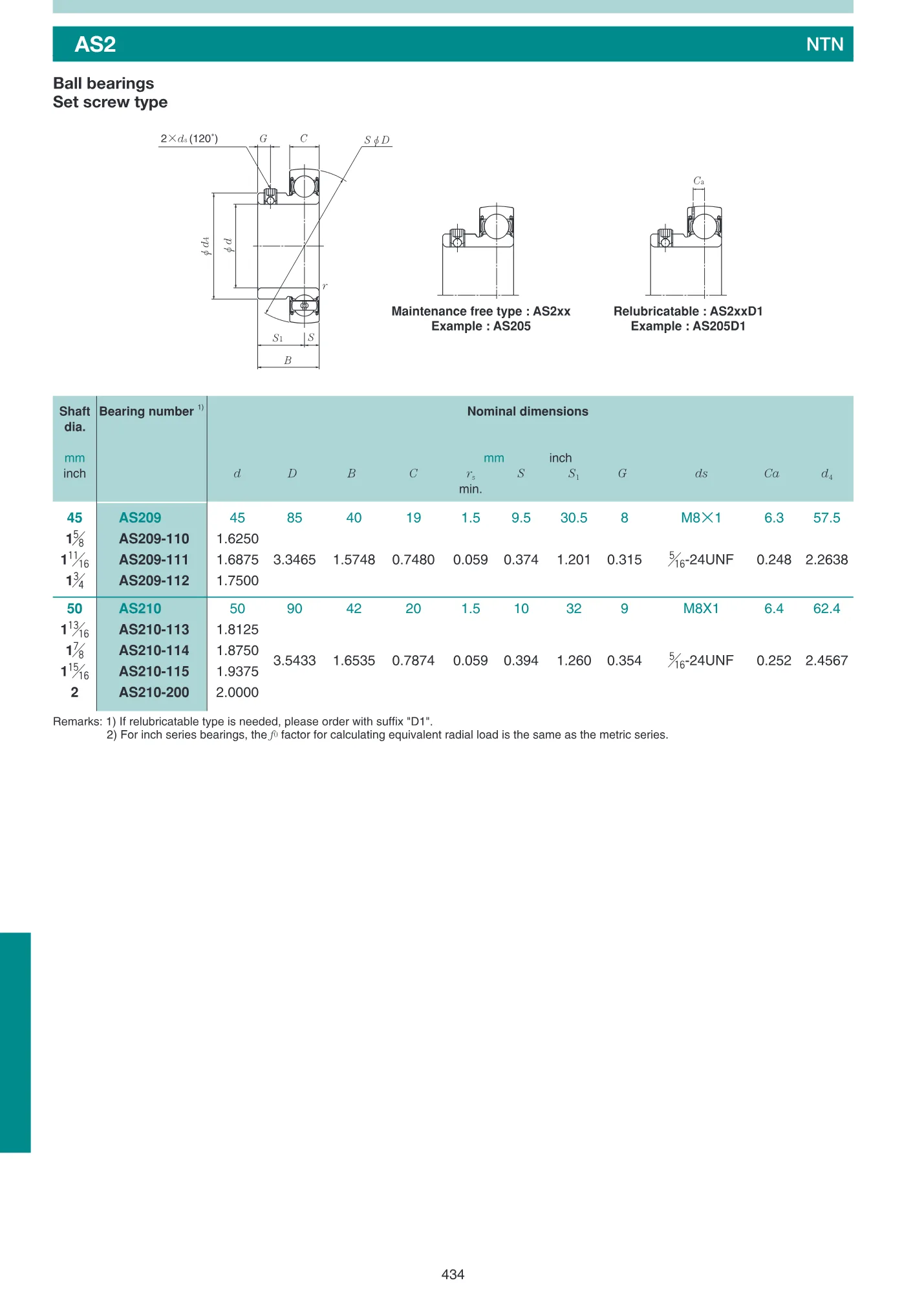

Excerpt from the manufacturer's official catalog — NTN CAT.2400E — Bearing Units
