| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.329 kg | Weight |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
NTN
NTN
NTN GS81216 Axial Bearing Washer 82 × 115 × 8.5 mm
Housing locating washers
Axial Bearing Washer
RFQ
In stock
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Axial Bearing Washer
- Bore
- 82 mm
- Outer Ø
- 115 mm
- Width
- 8.5 mm
Overview
NTN GS81216 Axial Bearing Washer is an accessory raceway component for thrust needle or roller bearings. When adjacent machine surfaces cannot serve as raceways or lack the required surface quality, it helps transmit axial load reliably and reduce wear.
It is a precision-machined thin washer used as a shaft washer or housing washer. Combined with roller-and-cage assemblies, it forms an axial bearing set.
Key features
- Provides raceway surface for thrust bearings
- Reduces surface requirements on adjacent parts
- Stabilizes axial load transmission
- Fits into thin axial spaces
Typical applications
- Thrust needle bearing sets
- Axial cylindrical roller bearing sets
- Gearbox axial supports
- Compact drive washer assemblies
Selection guidance
Check bore, outside diameter, thickness, washer position, matching roller assembly, and required surface hardness.
| Symbol | Value | Description |
|---|---|---|
| d | 82 mm | Bore diameter |
| D | 115 mm | Outside diameter |
| B | 8.5 mm | Width |
| Code | Description |
|---|---|
| Steel | Material |

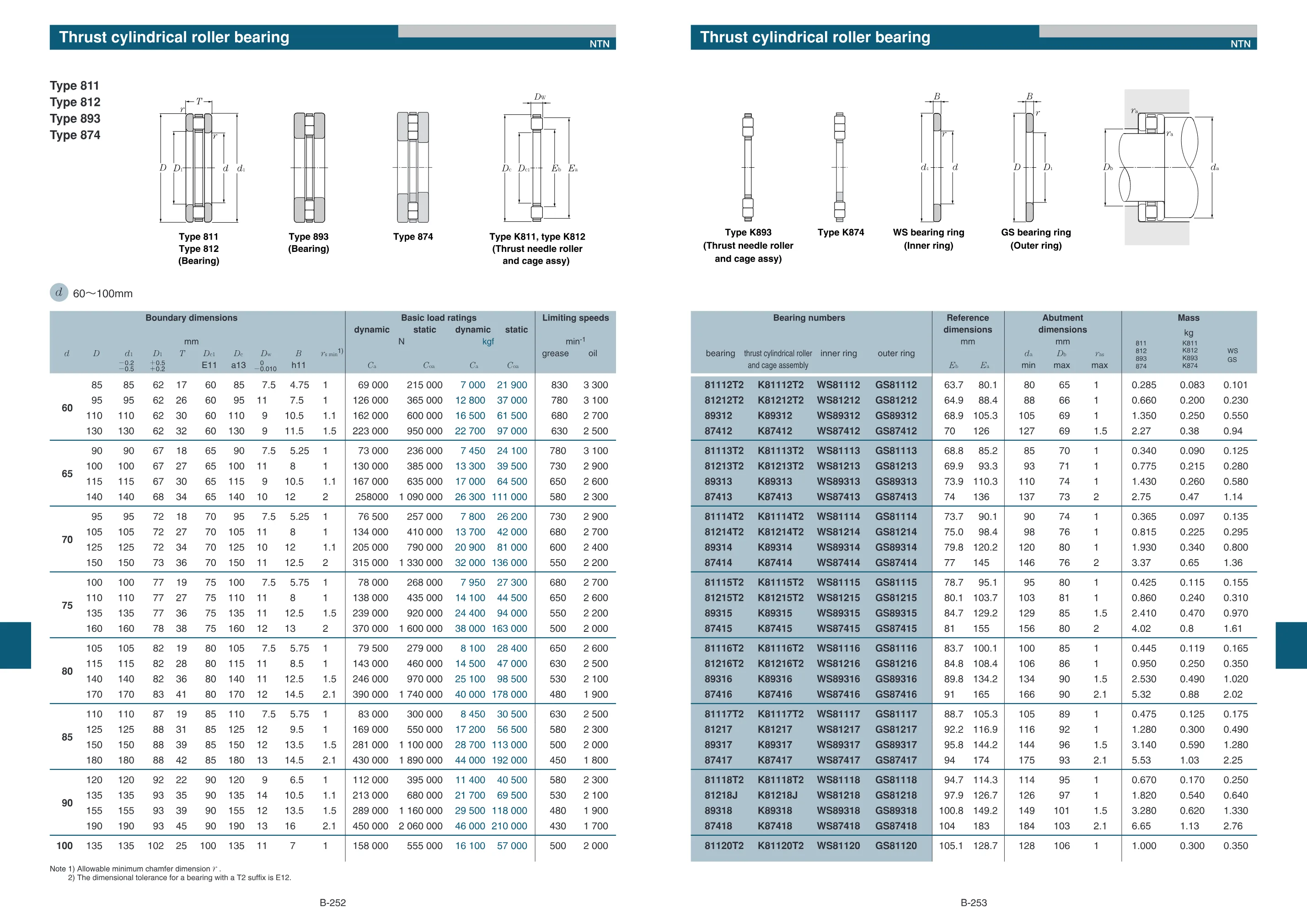

Excerpt from the manufacturer's official catalog — NTN CAT.2300 — Needle Roller Bearings
