| Symbol | Value | Description |
|---|---|---|
| nG | 3300 rpm | Limiting speed (grease) |
| nO | 4500 rpm | Limiting speed (oil-air) |
| ≈m | 0.8 kg | Weight |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
NTN
NTN
NTN KRV62/3AS Stud Type Track Roller 24 × 62 × 29 mm
Cam Followers (Stud Type)
Stud Type Track Roller
RFQ
Estimated delivery: 17 Jul 2026 (domestic stock)
In stockEstimated delivery: 17 Jul 2026 (domestic stock)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Stud Type Track Roller
- Bore
- 24 mm
- Outer Ø
- 62 mm
- Width
- 29 mm
Overview
NTN KRV62/3AS Stud Type Track Roller is a cam follower with an integrated stud and bearing outer ring. It mounts without a separate shaft, saving space while supporting repeated loads in cams, guide rails, and automated handling equipment.
Needle or cylindrical rollers run inside a thick outer ring, while a threaded stud acts as the shaft. Options such as eccentric studs, seals, and lubrication holes improve adjustment and maintenance.
Key features
- Integrated stud for simple mounting
- Thick outer ring for cam and track contact
- Handles repeated shock loads
- Eccentric versions allow position adjustment
Typical applications
- Cam follower mechanisms
- Automated transfer rails
- Packaging and printing machines
- Lifts, doors, and guide systems
Selection guidance
Check stud diameter and thread, outer ring profile, eccentric adjustment need, load, speed, and lubrication.
| Symbol | Value | Description |
|---|---|---|
| d | 24 mm | Bore diameter |
| D | 62 mm | Outside diameter |
| B | 29 mm | Width |

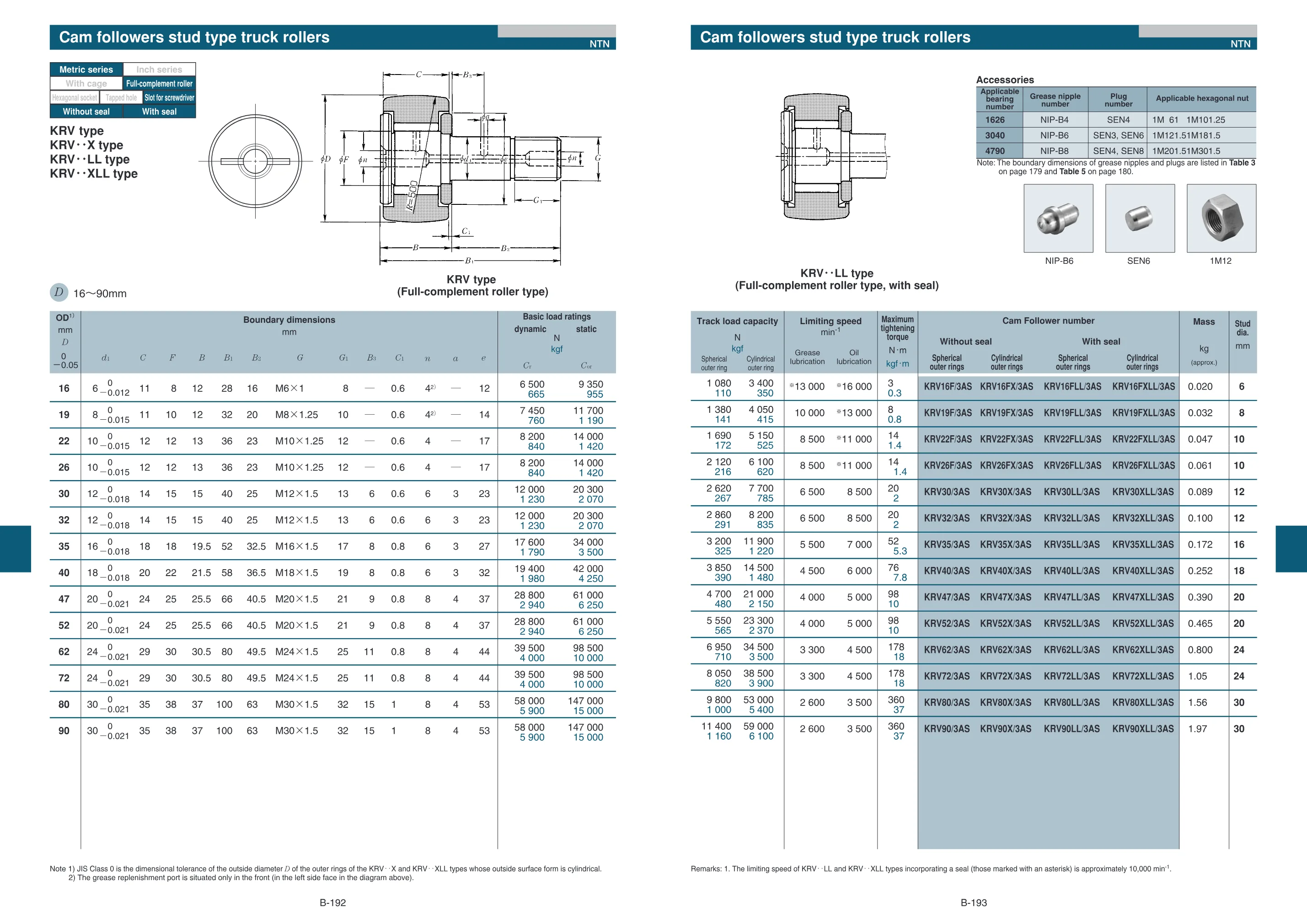

Excerpt from the manufacturer's official catalog — NTN CAT.2300 — Needle Roller Bearings
