| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.193 kg | Weight |
| Cr | 38500 N | Basic dynamic load rating, radial |
| C0r | 76000 N | Basic static load rating, radial |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
NTN

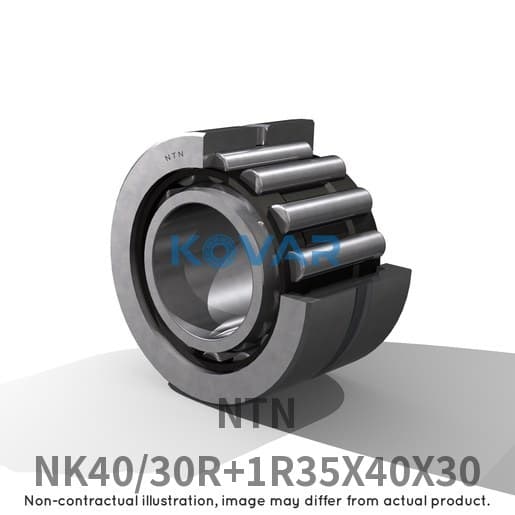

NTN NK40/30R+1R35X40X30 Machined needle roller bearing 35 × 50 × 30 mm
Machined needle roller bearing
Needle Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Needle Roller Bearing
- Bore
- 35 mm mm
- Outer Ø
- 50 mm mm
- Width
- 30 mm mm
Overview
NTN NK40/30R+1R35X40X30 Needle Roller Bearing is a compact bearing designed to carry high radial load within a small cross-section. It is suitable for gearboxes, automotive transmissions, industrial links, and pivot positions where space saving and load capacity are both required.
Long, small-diameter rollers are arranged in a cage or full-complement design. Versions with or without inner rings are available, and shaft hardness and surface finish are critical when the shaft is used as the raceway.
Key features
- High radial load capacity in limited radial space
- Supports compact and lightweight designs
- Available with or without inner ring
- Suitable for heavily loaded gears and links
Typical applications
- Automotive transmissions
- Industrial gearboxes
- Compressors and pumps
- Links, pivots, and rocker arms
Selection guidance
Check mounting envelope, inner ring requirement, shaft surface hardness, lubrication, load, and speed range.
| Symbol | Value | Description |
|---|---|---|
| d | 35 mm | Bore diameter |
| D | 50 mm | Outside diameter |
| B | 30 mm | Width |
| Code | Description |
|---|---|
| CN | Radial clearance group |
| Sheet steel cage | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
