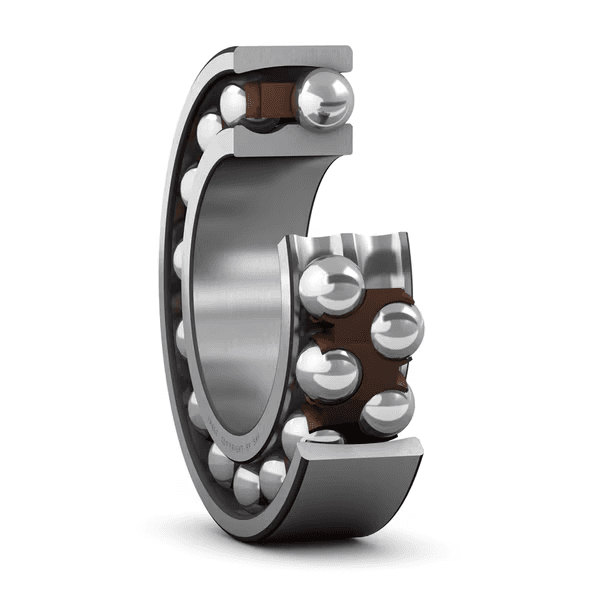

SKF 1203 ETN9/C3 Self-Aligning Ball Bearing 17 × 40 × 12 mm

Self-Aligning Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Self-Aligning Ball Bearing
Dimensions: 17x40x12mm

Overview

Self-aligning ball bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Key features

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Typical applications

Fans and blowers
Conveyor shafts
Textile machinery
Agricultural and general machinery

Selection guidance

Check expected misalignment, load, sealing needs, internal clearance, and available mounting space.

Symbol	Value	Description
C	8.84 kN	Basic dynamic load rating
C0	2.2 kN	Basic static load rating
reference_speed_rpm	38 000 r/min	Reference speed
limiting_speed_rpm	24 000 r/min	Limiting speed

Symbol	Value	Description
d	17 mm	Bore diameter
D	40 mm	Outside diameter
B	12 mm	Width

Accommodates static and dynamic misalignment
Excellent high-speed performance
Excellent light-load capability
Low friction

Code	Description
고정 기능, 내륜	None
로케이팅 기능, 베어링 외륜	None
열 개수	2
보어 유형	Cylindrical
케이지	Non-metallic
경방향 내부틈새	C3
공차 클래스	Normal
소재, 베어링	Bearing steel
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	0.073 kg
eClass 코드	23-05-08-06
UNSPSC 코드	31171532

datasheet pdf download
