  1. Home
  2. /Bearings
  3. /SKF 1314 Self-Aligning Ball Bearing
SKF
SKF 1314 SKF 1314 Self-Aligning Ball Bearing
  • SKF 1314 SKF 1314 Self-Aligning Ball Bearing

SKF

SKF 1314 Self-Aligning Ball Bearing 70 × 150 × 35 mm

Self-Aligning Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXC93J1JM7
Category
Self-Aligning Ball Bearing
Bore
70 mm

Overview

The SKF 1314 is a plain self-aligning ball bearing with no suffix, 70 × 150 × 35 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 70×150×35 mm size; the closest to the 1314 are 1314/C3 (internal clearance C3). The 1314 weighs 3 kg, compared with 2.97 kg for the 1314/C3.

The same specification comes one size down as 1313 (65 mm bore) and one size up as 1315 (75 mm bore). Parts from other brands with the same dimensions as the 1314 include FAG 1314-M, KOYO 1314, NSK 1314, NTN 1314; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C74.1 kNBasic dynamic load rating
C027.5 kNBasic static load rating
nϑr8 500 r/minReference speed
nG6 000 r/minLimiting speed
≈m3 kgWeight

Dimensions

SymbolValueDescription
d70 mmBore diameter
D150 mmOutside diameter
B35 mmWidth

Mounting Dimensions

SymbolValueDescription
damin. 82 mmda
Damax. 138 mmDa
ramax. 2 mmra

Related Parts

CodeDescription
고정 기능, 내륜None
Locating feature, bearing outer ringNone
Number of rows2
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight3 kg
eClass code23-05-08-06
UNSPSC code31171532

Characteristics

  • Accommodates static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light-load capability
  • Low friction

Product description

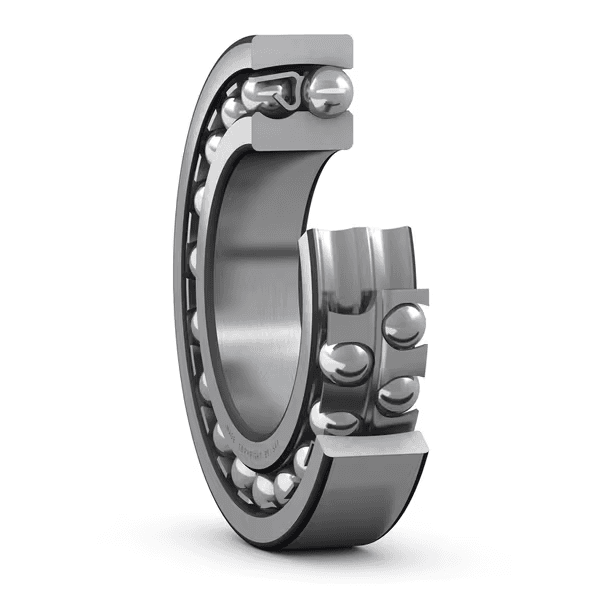

Self-aligning ball bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Key features

  • ·Accommodate static and dynamic misalignment
  • ·Excellent high-speed performance
  • ·Excellent light load performance
  • ·Low friction

Typical applications

  • ·Fans and blowers
  • ·Conveyor shafts
  • ·Textile machinery
  • ·Agricultural and general machinery

Selection guidance

Check expected misalignment, load, sealing needs, internal clearance, and available mounting space.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 1314

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
