  1. Home
  2. /Bearings
  3. /SKF 16009 Deep Groove Ball Bearing
SKF
SKF 16009 SKF 16009 Deep Groove Ball Bearing
  • SKF 16009 SKF 16009 Deep Groove Ball Bearing

SKF

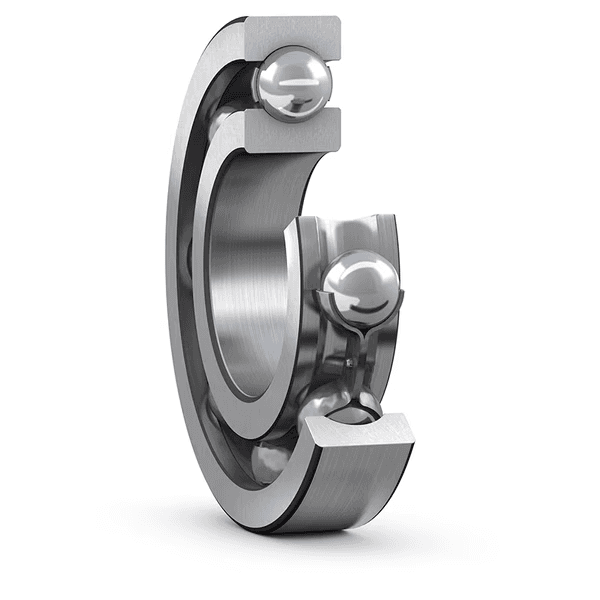

SKF 16009 Deep Groove Ball Bearing 45 × 75 × 10 mm

Deep Groove Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TL92M33K8S
Category
Deep Groove Ball Bearing
Bore
45 mm

Overview

SKF 16009: a plain deep groove ball bearing with no suffix measuring 45 × 75 × 10 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 45×75×10 mm size; the closest to the 16009 are 16009/C3 (internal clearance C3).

The same specification comes one size down as 16008 (40 mm bore) and one size up as 16010 (50 mm bore). Looking for the 16009 size from another brand? Options include FAG 16009, IBC 16009, KOYO 16009, NSK 16009 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C16.5 kNBasic dynamic load rating
C010.8 kNBasic static load rating
nϑr20 000 r/minReference speed
nG12 000 r/minLimiting speed
SKF ExplorerSKF performance class
≈m0.166 kgWeight

Dimensions

SymbolValueDescription
d45 mmBore diameter
D75 mmOutside diameter
B10 mmWidth

Mounting Dimensions

SymbolValueDescription
damin. 48.2 mmda
Damax. 71.8 mmDa
ramax. 0.6 mmra

Related Parts

CodeDescription
Filling slotNone
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceCN
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight0.166 kg
eClass code23-05-08-01
UNSPSC code31171504

Characteristics

  • Simple, versatile and robust design
  • Low friction
  • High-speed performance
  • Accommodates radial and axial loads in both directions
  • Requires almost no maintenance

Product description

Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Key features

  • ·Simple, versatile and robust design
  • ·Low friction
  • ·High-speed capability
  • ·Accommodate radial and axial loads in both directions
  • ·Require little maintenance

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 16009

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • FAG
    FAG FAG 16009 Deep Groove Ball Bearing

    FAG

    16009

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • IBC
    IBC IBC 16009 Deep Groove Ball Bearing

    IBC

    16009

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 16009 Deep Groove Ball Bearing

    KOYO

    16009

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 16009 Deep Groove Ball Bearing

    NSK

    16009

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 16009 Deep Groove Ball Bearing

    NTN

    16009

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • TIMKEN
    TIMKEN TIMKEN 16009 Deep Groove Ball Bearing

    TIMKEN

    16009

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 16009, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 16009-A Deep Groove Ball Bearing

    FAG

    16009-A

    Deep Groove Ball Bearing

    US$6.47

    Excl. VAT

    ●

    In stock (16)

  • KOYO
    KOYO KOYO 16009C3 Deep Groove Ball Bearing

    KOYO

    16009C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 16009C2 Deep Groove Ball Bearing

    NTN

    16009C2

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 16009/C3 Deep Groove Ball Bearing

    SKF

    16009/C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • TIMKEN
    TIMKEN TIMKEN 16009-C3 Deep Groove Ball Bearing

    TIMKEN

    16009-C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 16009-A-C3 Deep Groove Ball Bearing

    FAG

    16009-A-C3

    Deep Groove Ball Bearing

    US$6.47

    Excl. VAT

    ●

    In stock (9)

  • NTN
    NTN NTN 16009C3 Deep Groove Ball Bearing

    NTN

    16009C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 16009-C3 Deep Groove Ball Bearing

    FAG

    16009-C3

    Deep Groove Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
