  1. Home
  2. /Bearings
  3. /SKF 2306 Self-Aligning Ball Bearing
SKF

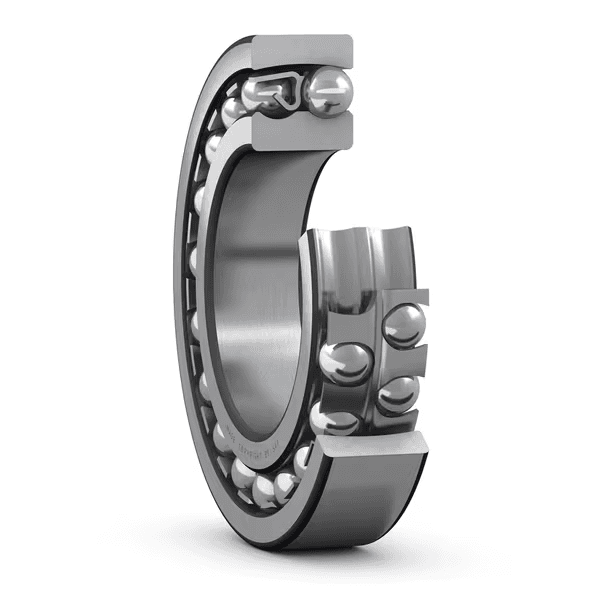

SKF 2306 SKF 2306 Self-Aligning Ball Bearing
  • SKF 2306 SKF 2306 Self-Aligning Ball Bearing

SKF

SKF 2306 Self-Aligning Ball Bearing 30 × 72 × 27 mm

Self-Aligning Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWPQ6TPDET
Category
Self-Aligning Ball Bearing
Bore
30 mm
Outer Ø
72 mm
Width
27 mm

Overview

The SKF 2306 is a plain self-aligning ball bearing with no suffix, 30 × 72 × 27 mm (bore × OD × width).

Kovar lists 7 SKF variants in the 30×72×27 mm size; the closest to the 2306 are 2306/C3 (internal clearance C3), 2306E-2RS1TN9 (optimized internal design, Contact seals (NBR) on both sides, Glass fibre reinforced PA66 cage), 2306K (tapered bore). Limiting speed is 13,000 rpm for the 2306 versus 6,700 rpm for the 2306E-2RS1TN9.

The same specification comes one size down as 2305 (25 mm bore) and one size up as 2307 (35 mm bore). Parts from other brands with the same dimensions as the 2306 include FAG 2306-M, KOYO 2306, NSK 2306, NTN 2306; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
nϑr18000 r/minReference speed
nG13000 r/minLimiting speed
≈m0.496 kgWeight
C31.2 kNBasic Dynamic Load Rating (C)
C08.8 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d30 mmBore diameter
D72 mmOutside diameter
B27 mmWidth

Product description

Self-aligning ball bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Key features

  • ·Accommodate static and dynamic misalignment
  • ·Excellent high-speed performance
  • ·Excellent light load performance
  • ·Low friction

Typical applications

  • ·Fans and blowers
  • ·Conveyor shafts
  • ·Textile machinery
  • ·Agricultural and general machinery

Selection guidance

Check expected misalignment, load, sealing needs, internal clearance, and available mounting space.

RFQ

Interchangeable alternatives to SKF 2306

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • FAG
    FAG FAG 2306-M Self-Aligning Ball Bearing

    FAG

    2306-M

    Self-Aligning Ball Bearing

    US$53.03

    Excl. VAT

    ●

    In stock (16)

  • KOYO
    KOYO KOYO 2306 Self-Aligning Ball Bearing

    KOYO

    2306

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 2306 Self-Aligning Ball Bearing

    NSK

    2306

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2306 Self-Aligning Ball Bearing

    NTN

    2306

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2306M Self-Aligning Ball Bearing

    SKF

    2306M

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 2306-TVH Self-Aligning Ball Bearing

    FAG

    2306-TVH

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 2306, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 2306-2RS-TVH Self-Aligning Ball Bearing

    FAG

    2306-2RS-TVH

    Self-Aligning Ball Bearing

    US$19.33

    Excl. VAT

    ●

    In stock (262)

  • NSK
    NSK NSK 2306-2RSTNG Self-Aligning Ball Bearing

    NSK

    2306-2RSTNG

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2306K Self-Aligning Ball Bearing

    NTN

    2306K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2306/C3 Self-Aligning Ball Bearing

    SKF

    2306/C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 2306-K-TVH-C3 Self-Aligning Ball Bearing

    FAG

    2306-K-TVH-C3

    Self-Aligning Ball Bearing

    US$12.52

    Excl. VAT

    ●

    In stock (27)

  • NSK
    NSK NSK 2306M Self-Aligning Ball Bearing

    NSK

    2306M

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2306S Self-Aligning Ball Bearing

    NTN

    2306S

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2306E-2RS1TN9 Self-Aligning Ball Bearing

    SKF

    2306E-2RS1TN9

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

More part numbers near SKF 2306

Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.

  • SKF
    SKF SKF 2305M/VQ335 Self-Aligning Ball Bearing

    SKF

    2305M/VQ335

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2305M/P6 Self-Aligning Ball Bearing

    SKF

    2305M/P6

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2305M Self-Aligning Ball Bearing

    SKF

    2305M

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2305ETN9/C3 Self-Aligning Ball Bearing

    SKF

    2305ETN9/C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2305ETN9 Self-Aligning Ball Bearing

    SKF

    2305ETN9

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2305E-2RS1TN9/C3 Self-Aligning Ball Bearing

    SKF

    2305E-2RS1TN9/C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2305E-2RS1TN9 Self-Aligning Ball Bearing

    SKF

    2305E-2RS1TN9

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 23060 Spherical Roller Bearing

    SKF

    23060

    Spherical Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
