  1. Home
  2. /Bearings
  3. /SKF 2312 Self-Aligning Ball Bearing
SKF

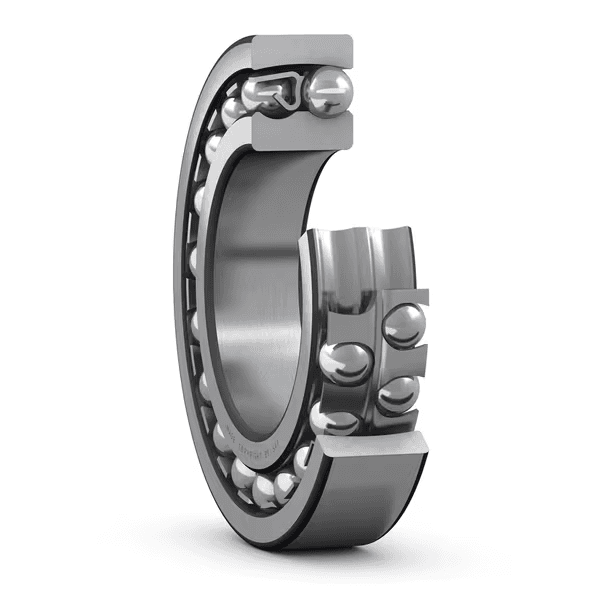

SKF 2312 SKF 2312 Self-Aligning Ball Bearing
  • SKF 2312 SKF 2312 Self-Aligning Ball Bearing

SKF

SKF 2312 Self-Aligning Ball Bearing 60 × 130 × 46 mm

Self-Aligning Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLWK3AGHHE
Category
Self-Aligning Ball Bearing
Bore
60 mm
Outer Ø
130 mm
Width
46 mm

Overview

SKF 2312: a plain self-aligning ball bearing with no suffix measuring 60 × 130 × 46 mm (bore × OD × width).

Kovar lists 6 SKF variants in the 60×130×46 mm size; the closest to the 2312 are 2312/C3 (internal clearance C3), 2312/W64, 2312K (tapered bore). The 2312 weighs 2.6 kg, compared with 2.55 kg for the 2312K.

The same specification comes one size down as 2311 (55 mm bore) and one size up as 2313 (65 mm bore). Looking for the 2312 size from another brand? Options include FAG 2312-M, KOYO 2312, NSK 2312, NTN 2312 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
nϑr9500 r/minReference speed
nG7000 r/minLimiting speed
≈m2.6 kgWeight
C87.1 kNBasic Dynamic Load Rating (C)
C028.5 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d60 mmBore diameter
D130 mmOutside diameter
B46 mmWidth

Product description

Self-aligning ball bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Key features

  • ·Accommodate static and dynamic misalignment
  • ·Excellent high-speed performance
  • ·Excellent light load performance
  • ·Low friction

Typical applications

  • ·Fans and blowers
  • ·Conveyor shafts
  • ·Textile machinery
  • ·Agricultural and general machinery

Selection guidance

Check expected misalignment, load, sealing needs, internal clearance, and available mounting space.

RFQ

Interchangeable alternatives to SKF 2312

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • FAG
    FAG FAG 2312-M-FAG Self-Aligning Ball Bearing

    FAG

    2312-M-FAG

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 2312 Self-Aligning Ball Bearing

    KOYO

    2312

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 2312 Self-Aligning Ball Bearing

    NSK

    2312

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2312 Self-Aligning Ball Bearing

    NTN

    2312

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2312/W64 Self-Aligning Ball Bearing

    SKF

    2312/W64

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 2312-TVH Self-Aligning Ball Bearing

    FAG

    2312-TVH

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 2312, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 2312-K-TVH-C3 Self-Aligning Ball Bearing

    FAG

    2312-K-TVH-C3

    Self-Aligning Ball Bearing

    US$47.95

    Excl. VAT

    ●

    In stock (5)

  • KOYO
    KOYO KOYO 2312C3 Self-Aligning Ball Bearing

    KOYO

    2312C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 2312C3 Self-Aligning Ball Bearing

    NSK

    2312C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2312K Self-Aligning Ball Bearing

    NTN

    2312K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2312/C3 Self-Aligning Ball Bearing

    SKF

    2312/C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 2312-M-C3 Self-Aligning Ball Bearing

    FAG

    2312-M-C3

    Self-Aligning Ball Bearing

    US$120.97

    Excl. VAT

    ●

    In stock (1)

  • KOYO
    KOYO KOYO 2312K Self-Aligning Ball Bearing

    KOYO

    2312K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 2312K Self-Aligning Ball Bearing

    NSK

    2312K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
