  1. Home
  2. /Bearings
  3. /SKF 2313 Self-Aligning Ball Bearing
SKF

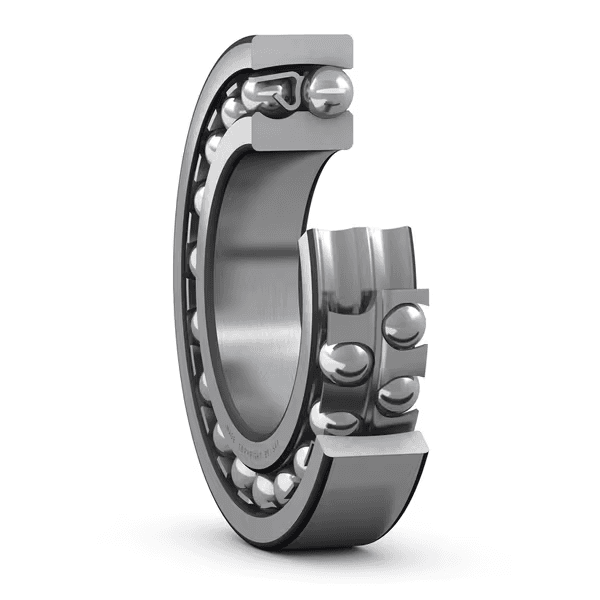

SKF 2313 SKF 2313 Self-Aligning Ball Bearing
  • SKF 2313 SKF 2313 Self-Aligning Ball Bearing

SKF

SKF 2313 Self-Aligning Ball Bearing 65 × 140 × 48 mm

Self-Aligning Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXMH4TYGXJ
Category
Self-Aligning Ball Bearing
Bore
65 mm
Outer Ø
140 mm
Width
48 mm

Overview

The SKF 2313 is a plain self-aligning ball bearing with no suffix, 65 × 140 × 48 mm (bore × OD × width).

Kovar lists 4 SKF variants in the 65×140×48 mm size; the closest to the 2313 are 2313/C3 (internal clearance C3), 2313K (tapered bore), 2313K/C3 (tapered bore, Internal clearance C3). The 2313 weighs 3.21 kg, compared with 3.16 kg for the 2313K.

The same specification comes one size down as 2312 (60 mm bore) and one size up as 2314 (70 mm bore). Parts from other brands with the same dimensions as the 2313 include FAG 2313-M, KOYO 2313, NSK 2313K, NTN 2313; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
nϑr9000 r/minReference speed
nG6300 r/minLimiting speed
≈m3.21 kgWeight
C95.6 kNBasic Dynamic Load Rating (C)
C032.5 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d65 mmBore diameter
D140 mmOutside diameter
B48 mmWidth

Product description

Self-aligning ball bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Key features

  • ·Accommodate static and dynamic misalignment
  • ·Excellent high-speed performance
  • ·Excellent light load performance
  • ·Low friction

Typical applications

  • ·Fans and blowers
  • ·Conveyor shafts
  • ·Textile machinery
  • ·Agricultural and general machinery

Selection guidance

Check expected misalignment, load, sealing needs, internal clearance, and available mounting space.

RFQ

Interchangeable alternatives to SKF 2313

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • FAG
    FAG FAG 2313-TVH Self-Aligning Ball Bearing

    FAG

    2313-TVH

    Self-Aligning Ball Bearing

    US$64.55

    Excl. VAT

    ●

    In stock (1)

  • KOYO
    KOYO KOYO 2313 Self-Aligning Ball Bearing

    KOYO

    2313

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2313 Self-Aligning Ball Bearing

    NTN

    2313

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 2313-M Self-Aligning Ball Bearing

    FAG

    2313-M

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 2313, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 2313-K-TVH-C3 Self-Aligning Ball Bearing

    FAG

    2313-K-TVH-C3

    Self-Aligning Ball Bearing

    US$59.02

    Excl. VAT

    ●

    In stock (6)

  • NSK
    NSK NSK 2313C3 Self-Aligning Ball Bearing

    NSK

    2313C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2313K Self-Aligning Ball Bearing

    NTN

    2313K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2313/C3 Self-Aligning Ball Bearing

    SKF

    2313/C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 2313-K-M-C3 Self-Aligning Ball Bearing

    FAG

    2313-K-M-C3

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 2313K Self-Aligning Ball Bearing

    NSK

    2313K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 2313S Self-Aligning Ball Bearing

    NTN

    2313S

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 2313K Self-Aligning Ball Bearing

    SKF

    2313K

    Self-Aligning Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
