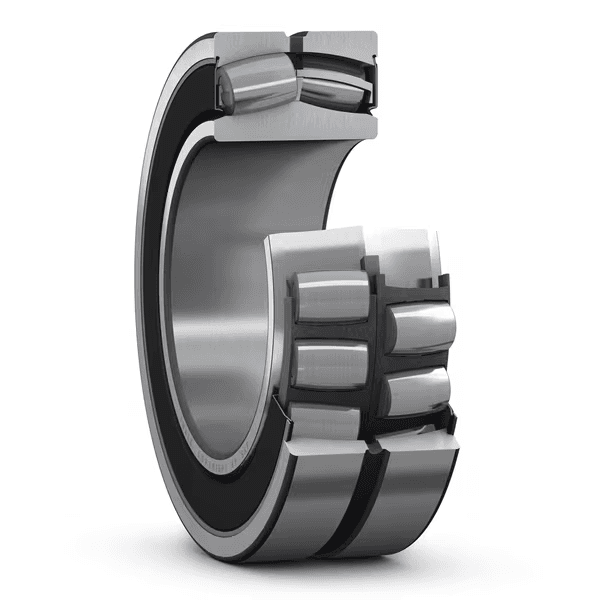

SKF 23160-2CS5/VT143 Spherical Roller Bearing 300 × 500 × 160 mm

Spherical roller bearing with integral sealing and relubrication features

Spherical Roller Bearing

RFQ

Out of stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Roller Bearing
Dimensions: 300x500x160mm

Overview

Spherical roller bearing with integral sealing and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

Key features

Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability, with relubrication features
Low friction and long service life
Increased wear resistance

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

Symbol	Value	Description
C	3 373 kN	Basic dynamic load rating
C0	5 100 kN	Basic static load rating
limiting_speed_rpm	390 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	300 mm	Bore diameter
D	500 mm	Outside diameter
B	160 mm	Width

Symbol	Value	Description
da	max. 337 mm	da
Da	max. 480 mm	Da
ra	max. 4 mm	ra

Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability
with relubrication features
Low friction and long service life
Increased wear resistance

Code	Description
열 개수	2
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
경방향 내부틈새	CN
치수에 대한 공차 등급	Normal
런아웃 공차 등급	P5
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Grease
재윤활 기능	Included
재제조가능여부	Yes
제품 순 중량	126 kg
