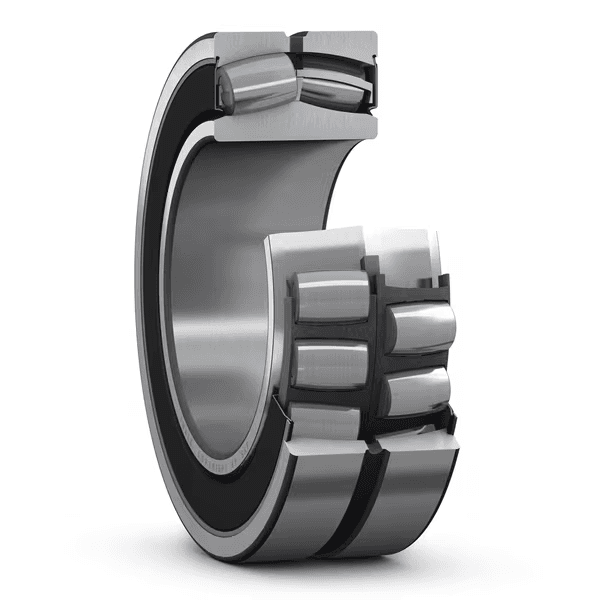

SKF 23168-2CS5/VT143 Spherical Roller Bearing 340 × 580 × 190 mm

Spherical roller bearing with integral sealing and relubrication features

Spherical Roller Bearing

RFQ

Out of stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Roller Bearing
Dimensions: 340x580x190mm

Overview

Spherical roller bearing with integral sealing and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

Key features

Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability, with relubrication features
Low friction and long service life
Increased wear resistance

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

Symbol	Value	Description
C	4 452 kN	Basic dynamic load rating
C0	6 800 kN	Basic static load rating
d	340 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	340 mm	Bore diameter
D	580 mm	Outside diameter
B	190 mm	Width

Symbol	Value	Description
da	max. 385 mm	da
Da	max. 560 mm	Da
ra	max. 4 mm	ra

Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability
with relubrication features
Low friction and long service life
Increased wear resistance

Code	Description
열 개수	2
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
경방향 내부틈새	CN
치수에 대한 공차 등급	Normal
런아웃 공차 등급	Normal
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Grease
재윤활 기능	Included
재제조가능여부	Yes
제품 순 중량	206 kg
eClass 코드	23-05-09-11
UNSPSC 코드	31171510
