SKF
SKF 30203 SKF 30203 Tapered Roller Bearing
  • SKF 30203 SKF 30203 Tapered Roller Bearing

SKF

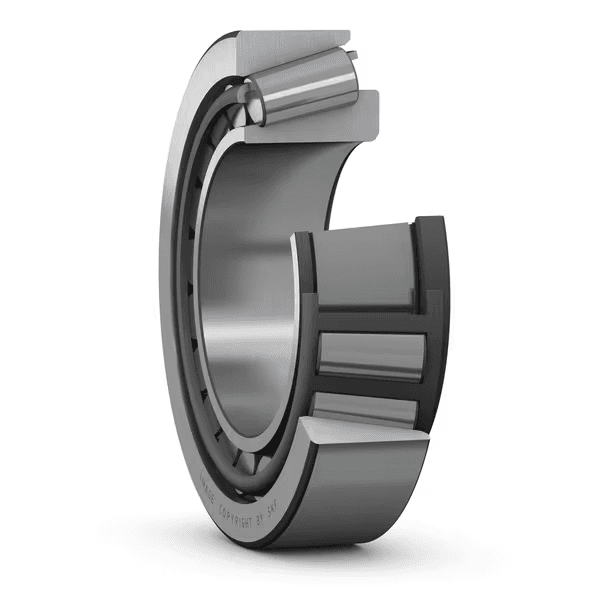

SKF 30203 Tapered Roller Bearing 17 × 40 × 13.25 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLJKCPRAQT
Category
Tapered Roller Bearing
Bore
17 mm
Outer Ø
40 mm
Width
13.25 mm

Overview

SKF 30203: a plain tapered roller bearing with no suffix measuring 17 × 40 × 13.25 mm (bore × OD × width).

The same specification comes one size down as 30202 (15 mm bore) and one size up as 30204 (20 mm bore). Looking for the 30203 size from another brand? Options include KOYO 30203, NSK 30203, NTN 4T-30203P5 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
nϑr15000 r/minReference speed
nG18000 r/minLimiting speed
≈m0.0774 kgWeight
α13 °Contact Angle (α)
C23.4 kNBasic Dynamic Load Rating (C)
C018.6 kNBasic Static Load Rating (C0)
SKF ExplorerPerformance Class

Dimensions

SymbolValueDescription
d17 mmBore diameter
D40 mmOutside diameter
B13.25 mmWidth
B12 mmInner Ring Width (B)
C11 mmCup Width (C)

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

RFQ

Interchangeable alternatives to SKF 30203

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
