  1. Home
  2. /Bearings
  3. /SKF 30232 Tapered Roller Bearing
SKF

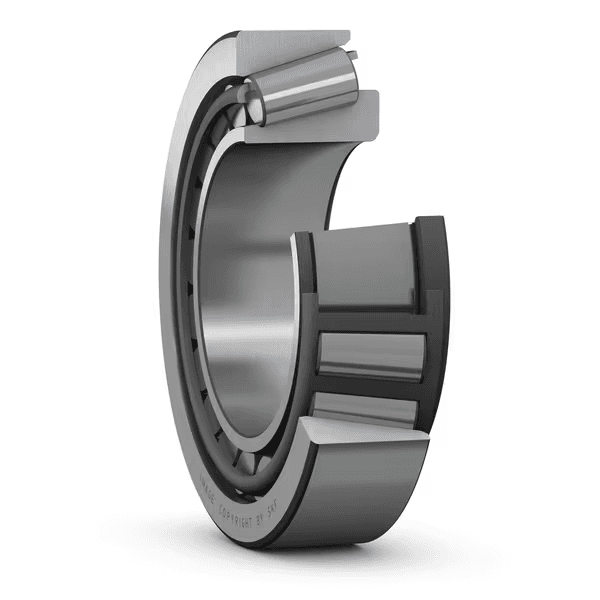

SKF 30232 SKF 30232 Tapered Roller Bearing
  • SKF 30232 SKF 30232 Tapered Roller Bearing

SKF

SKF 30232 Tapered Roller Bearing 160 × 290 × 52 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLW9APEWTM
Category
Tapered Roller Bearing
Bore
160 mm

Overview

SKF 30232: a plain tapered roller bearing with no suffix measuring 160 × 290 × 52 mm (bore × OD × width).

The same specification comes one size down as 30230 (150 mm bore) and one size up as 30234 (170 mm bore). Looking for the 30232 size from another brand? Options include FAG 30232, KOYO 30232, NSK 30232, NTN 30232 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C566 kNBasic dynamic load rating
C0735 kNBasic static load rating
nϑr1 600 r/minReference speed
nG2 200 r/minLimiting speed
≈m13.2 kgWeight

Dimensions

SymbolValueDescription
d160 mmBore diameter
D290 mmOutside diameter
T52 mmTotal width
B48 mmInner ring width
C40 mmOuter ring width
α16.2 °Contact angle

Mounting Dimensions

SymbolValueDescription
damax. 190 mmda
dbmin. 177 mmdb
Damax. 276 mmDa
Dbmin. 269 mmDb
Camin. 7 mmCa
Cbmin. 12 mmCb
ramax. 4 mmra
rbmax. 3 mmrb

Related Parts

CodeDescription
Bearing componentComplete bearing
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Contact angle arrangement (double row bearing)Not applicable
Matched arrangementNo
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
유닛 시스템Metric
Net weight13.2 kg
eClass code23-05-09-10
UNSPSC code31171516

Characteristics

  • High radial and axial load capacity
  • Accommodates axial loads in one direction
  • Low friction and long service life
  • Separable and replaceable components

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 30232

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
