  1. Home
  2. /Bearings
  3. /SKF 31311 Tapered Roller Bearing
SKF
SKF 31311 SKF 31311 Tapered Roller Bearing
  • SKF 31311 SKF 31311 Tapered Roller Bearing

SKF

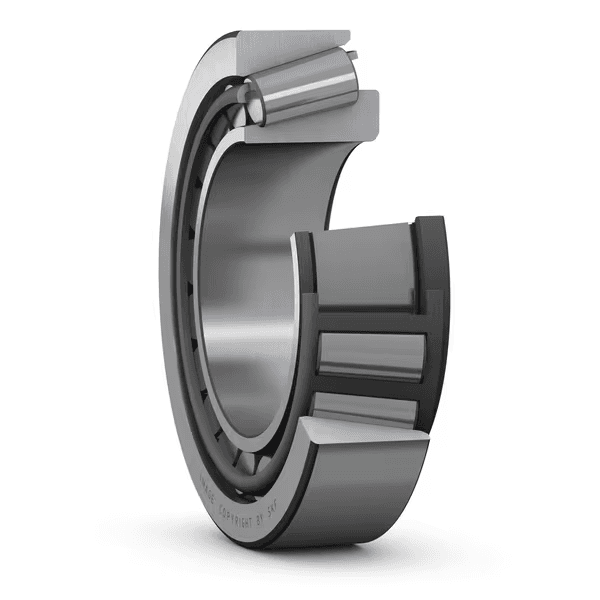

SKF 31311 Tapered Roller Bearing 55 × 120 × 31.5 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXE7CJBH92
Category
Tapered Roller Bearing
Bore
55 mm

Overview

The SKF 31311 is a plain tapered roller bearing with no suffix, 55 × 120 × 31.5 mm (bore × OD × width).

Kovar lists 6 SKF variants in the 55×120×31.5 mm size; the closest to the 31311 are 31311/DF = 2 pcs, 30311 (tapered roller bearing (metric series)), 31311/CL7C. The 31311 weighs 1.51 kg, compared with 1.56 kg for the 30311.

The same specification comes one size down as 31310 (50 mm bore) and one size up as 31312 (60 mm bore). Parts from other brands with the same dimensions as the 31311 include NSK 31311J; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C149 kNBasic dynamic load rating
C0137 kNBasic static load rating
nϑr4 300 r/minReference speed
nG5 600 r/minLimiting speed
SKF ExplorerSKF performance class
≈m1.51 kgWeight

Dimensions

SymbolValueDescription
d55 mmBore diameter
D120 mmOutside diameter
T31.5 mmTotal width
B29 mmInner ring width
C21 mmOuter ring width
α28.8 °Contact angle

Mounting Dimensions

SymbolValueDescription
damax. 68 mmda
dbmin. 66.5 mmdb
Damax. 111 mmDa
Dbmin. 113 mmDb
Camin. 4 mmCa
Cbmin. 10.5 mmCb
ramax. 2.5 mmra
rbmax. 2 mmrb

Related Parts

CodeDescription
Bearing componentComplete bearing
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Contact angle arrangement (double row bearing)Not applicable
Matched arrangementNo
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
유닛 시스템Metric
Net weight1.51 kg
eClass code23-05-09-10
UNSPSC code31171516

Characteristics

  • High radial and axial load capacity
  • Accommodates axial loads in one direction
  • Low friction and long service life
  • Separable and replaceable components

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 31311

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • NSK
    NSK NSK 31311J Tapered Roller Bearing

    NSK

    31311J

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • TIMKEN
    TIMKEN TIMKEN 31311 Tapered Roller Bearing

    TIMKEN

    31311

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 31311, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • SKF
    SKF SKF 31311/CL7C Tapered Roller Bearing

    SKF

    31311/CL7C

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 31311/DF = 2 pcs Tapered Roller Bearing

    SKF

    31311/DF = 2 pcs

    31311/DF = 2 pcs Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 31311J2/Q Tapered Roller Bearing

    SKF

    31311J2/Q

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 31311J2/QCL7CVQ267 Tapered Roller Bearing

    SKF

    31311J2/QCL7CVQ267

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
