  1. Home
  2. /Bearings
  3. /SKF 32309 Tapered Roller Bearing
SKF

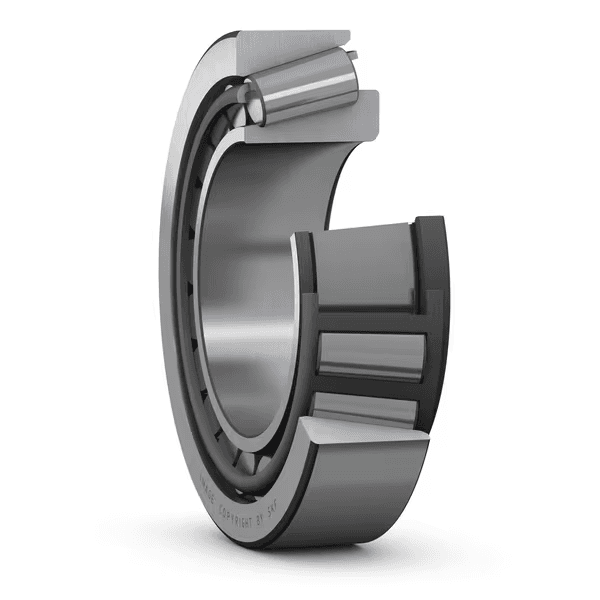

SKF 32309 SKF 32309 Tapered Roller Bearing
  • SKF 32309 SKF 32309 Tapered Roller Bearing

SKF

SKF 32309 Tapered Roller Bearing 45 × 100 × 38.25 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

Estimated delivery: 29 Nov 2026 (domestic stock)

In stockEstimated delivery: 29 Nov 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SK2TXTEZ80
Category
Tapered Roller Bearing
Bore
45 mm
Outer Ø
100 mm
Width
38.25 mm

Overview

The SKF 32309 is a plain tapered roller bearing with no suffix, 45 × 100 × 38.25 mm (bore × OD × width).

Kovar lists 3 SKF variants in the 45×100×38.25 mm size; the closest to the 32309 are 32309B/CL7C, 32309BRJ2/QCL7C. Limiting speed is 7,000 rpm for the 32309 versus 6,700 rpm for the 32309B/CL7C.

The same specification comes one size down as 32308 (40 mm bore) and one size up as 32310 (50 mm bore). Parts from other brands with the same dimensions as the 32309 include KOYO 32309, NSK 32309, NTN 32309, TIMKEN 32309; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
nϑr5300 r/minReference speed
nG7000 r/minLimiting speed
≈m1.36 kgWeight
α13 °Contact Angle (α)
C173 kNBasic Dynamic Load Rating (C)
C0170 kNBasic Static Load Rating (C0)
SKF ExplorerPerformance Class

Dimensions

SymbolValueDescription
d45 mmBore diameter
D100 mmOutside diameter
B38.25 mmWidth
B36 mmInner Ring Width (B)
C30 mmCup Width (C)

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

RFQ

Estimated delivery: 29 Nov 2026 (domestic stock)

Interchangeable alternatives to SKF 32309

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • KOYO
    KOYO KOYO 32309 Tapered Roller Bearing

    KOYO

    32309

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 32309 Tapered Roller Bearing

    NSK

    32309

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 32309 Tapered Roller Bearing

    NTN

    32309

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • TIMKEN
    TIMKEN TIMKEN 32309 Tapered Roller Bearing

    TIMKEN

    32309

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 32309JR Tapered Roller Bearing

    KOYO

    32309JR

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 32309J Tapered Roller Bearing

    NSK

    32309J

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 32309, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • SKF
    SKF SKF 32309B/CL7C Tapered Roller Bearing

    SKF

    32309B/CL7C

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32309BRJ2/QCL7C Tapered Roller Bearing

    SKF

    32309BRJ2/QCL7C

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

More part numbers near SKF 32309

Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.

  • SKF
    SKF SKF 32308J2/Q Tapered Roller Bearing

    SKF

    32308J2/Q

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32310 Tapered Roller Bearing

    SKF

    32310

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32308 Tapered Roller Bearing

    SKF

    32308

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32310B/CL7C Tapered Roller Bearing

    SKF

    32310B/CL7C

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32307J2/Q32307J2Q Tapered Roller Bearing

    SKF

    32307J2/Q32307J2Q

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32310B/CL7C32310BCL7C Tapered Roller Bearing

    SKF

    32310B/CL7C32310BCL7C

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32307J2/Q Tapered Roller Bearing

    SKF

    32307J2/Q

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 32310J2/QU4 Tapered Roller Bearing

    SKF

    32310J2/QU4

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
