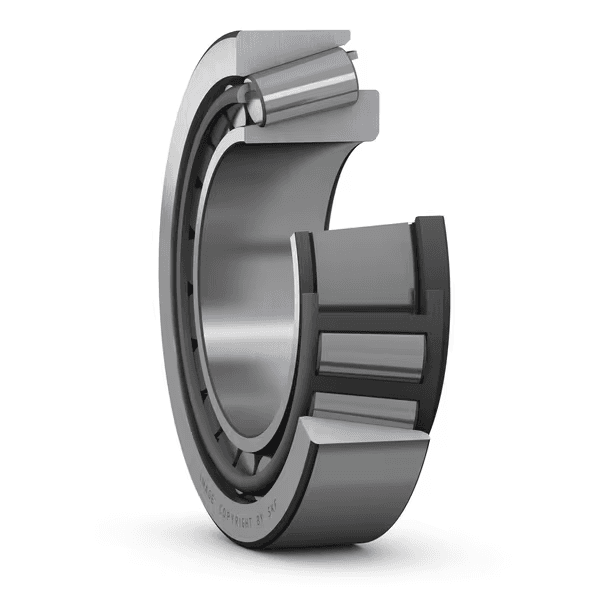

SKF 32317 B Tapered Roller Bearing 85 × 180 × 63.5 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Tapered Roller Bearing
Dimensions: 85x180x63.5mm

Overview

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Typical applications

Automotive and industrial wheel hubs
Gearboxes and differentials
Construction and agricultural axles
Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Symbol	Value	Description
C	417 kN	Basic dynamic load rating
C0	560 kN	Basic static load rating
reference_speed_rpm	2 600 r/min	Reference speed
limiting_speed_rpm	3 600 r/min	Limiting speed

Symbol	Value	Description
d	85 mm	Bore diameter
D	180 mm	Outside diameter
T	63.5 mm	Total width
B	60 mm	Inner ring width
C	49 mm	Outer ring width
α	20 °	Contact angle

Symbol	Value	Description
da	max. 102 mm	da
db	min. 100.5 mm	db
Da	max. 167.5 mm	Da
Db	min. 169 mm	Db
Ca	min. 7 mm	Ca
Cb	min. 14.5 mm	Cb
ra	max. 4 mm	ra
rb	max. 3 mm	rb

High radial and axial load capacity
Accommodates axial loads in one direction
Low friction and long service life
Separable and replaceable components

Code	Description
베어링 부품	Complete bearing
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
접촉각 배열(복열 베어링)	Not applicable
일치된 배열	No
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
유닛 시스템	Metric
제품 순 중량	7.35 kg
eClass 코드	23-05-09-10
UNSPSC 코드	31171516

datasheet pdf download
