  1. Home
  2. /Bearings
  3. /SKF 32322 Tapered Roller Bearing
SKF
SKF 32322 SKF 32322 Tapered Roller Bearing
  • SKF 32322 SKF 32322 Tapered Roller Bearing

SKF

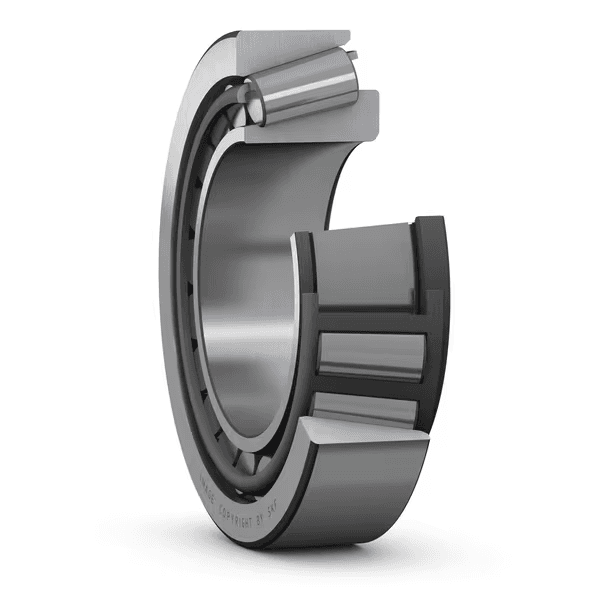

SKF 32322 Tapered Roller Bearing 110 × 240 × 84.5 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXRTK61JD8
Category
Tapered Roller Bearing
Bore
110 mm

Overview

SKF 32322: a plain tapered roller bearing with no suffix measuring 110 × 240 × 84.5 mm (bore × OD × width).

The same specification comes one size down as 32321 (105 mm bore) and one size up as 32324 (120 mm bore). Looking for the 32322 size from another brand? Options include FAG 32322-A, KOYO 32322, NSK 32322, NTN 32322 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C675 kNBasic dynamic load rating
C0830 kNBasic static load rating
nϑr1 900 r/minReference speed
nG2 800 r/minLimiting speed
≈m16.4 kgWeight

Dimensions

SymbolValueDescription
d110 mmBore diameter
D240 mmOutside diameter
T84.5 mmTotal width
B80 mmInner ring width
C65 mmOuter ring width
α13 °Contact angle

Mounting Dimensions

SymbolValueDescription
damax. 138 mmda
dbmin. 126.5 mmdb
Damax. 227 mmDa
Dbmin. 222 mmDb
Camin. 9 mmCa
Cbmin. 19.5 mmCb
ramax. 4 mmra
rbmax. 3 mmrb

Related Parts

CodeDescription
Bearing componentComplete bearing
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Contact angle arrangement (double row bearing)Not applicable
Matched arrangementNo
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
유닛 시스템Metric
Net weight16.4 kg
eClass code23-05-09-10
UNSPSC code31171516

Characteristics

  • High radial and axial load capacity
  • Accommodates axial loads in one direction
  • Low friction and long service life
  • Separable and replaceable components

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 32322

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • KOYO
    KOYO KOYO 32322 Tapered Roller Bearing

    KOYO

    32322

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 32322 Tapered Roller Bearing

    NSK

    32322

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 32322 Tapered Roller Bearing

    NTN

    32322

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • TIMKEN
    TIMKEN TIMKEN 32322 Tapered Roller Bearing

    TIMKEN

    32322

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 32322J Tapered Roller Bearing

    NSK

    32322J

    Tapered Roller Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
