SKF
Single row tapered roller bearing
Tapered Roller Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

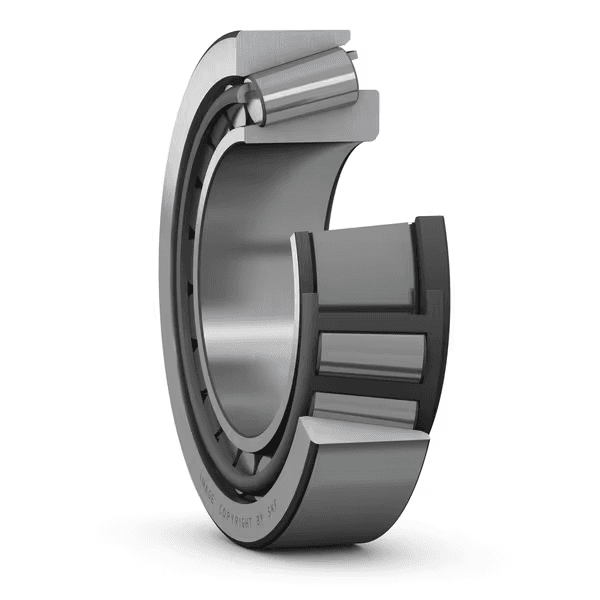

The SKF 33018 is a plain tapered roller bearing with no suffix, 90 × 140 × 39 mm (bore × OD × width).
Kovar lists 2 SKF variants in the 90×140×39 mm size; the closest to the 33018 are 33018/Q.
The same specification comes one size down as 33017 (85 mm bore) and one size up as 33019 (95 mm bore). Parts from other brands with the same dimensions as the 33018 include FAG 33018, KOYO 33018, NSK 33018, NTN 33018U; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| nϑr | 3600 r/min | Reference speed |
| nG | 4500 r/min | Limiting speed |
| ≈m | 2.19 kg | Weight |
| α | 10.2 ° | Contact Angle (α) |
| C | 266 kN | Basic Dynamic Load Rating (C) |
| C0 | 355 kN | Basic Static Load Rating (C0) |
| SKF Explorer | Performance Class |
| Symbol | Value | Description |
|---|---|---|
| d | 90 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| B | 39 mm | Width |
| C | 32.5 mm | Cup Width (C) |
Single row tapered roller bearing
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

FAG
33018
Tapered Roller Bearing
US$109.43
Excl. VAT
In stock (7)

KOYO
33018
Tapered Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
33018
Tapered Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NTN
33018U
Tapered Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

TIMKEN
33018
Tapered Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

KOYO
33018JR
Tapered Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
33018J
Tapered Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
