  1. Home
  2. /Bearings
  3. /SKF 51101 Thrust Bearing
SKF

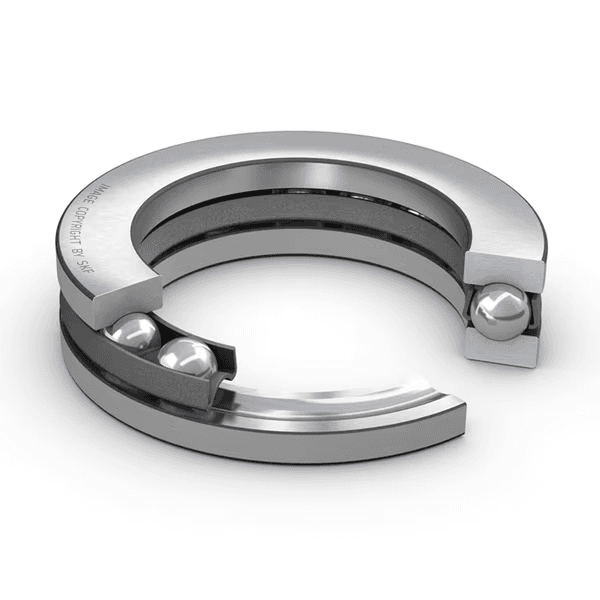

SKF 51101 SKF 51101 Thrust Bearing
  • SKF 51101 SKF 51101 Thrust Bearing

SKF

SKF 51101 Thrust Bearing Thrust Ball Bearing 12 × 26 × 9 mm

Single direction thrust ball bearing

Thrust Ball Bearing

RFQ

Estimated delivery: 28 Nov 2026 (domestic stock)

In stockEstimated delivery: 28 Nov 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SK0R17MZM0
Category
Thrust Ball Bearing
Bore
12 mm
Outer Ø
26 mm
Width
9 mm

Overview

SKF 51101: a plain thrust ball bearing with no suffix measuring 12 × 26 × 9 mm (bore × OD × width).

The same specification comes one size down as 51100 (10 mm bore) and one size up as 51102 (15 mm bore). Looking for the 51101 size from another brand? Options include FAG 51101, KOYO 51101, NSK 51101, NTN 51101 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
nϑr9000 r/minReference speed
nG13000 r/minLimiting speed
≈m0.022 kgWeight
C10.4 kNBasic Dynamic Load Rating (C)
C016.6 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d12 mmBore diameter
D26 mmOutside diameter
H9 mmHeight (H)
B9 mmWidth (B)

Product description

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Key features

  • ·Separable design facilitates mounting/dismounting and maintenance inspections
  • ·Interchangeable components
  • ·Ground bore of shaft washers enable interference fit

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

RFQ

Estimated delivery: 28 Nov 2026 (domestic stock)

Interchangeable alternatives to SKF 51101

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
