SKF
Single direction thrust ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

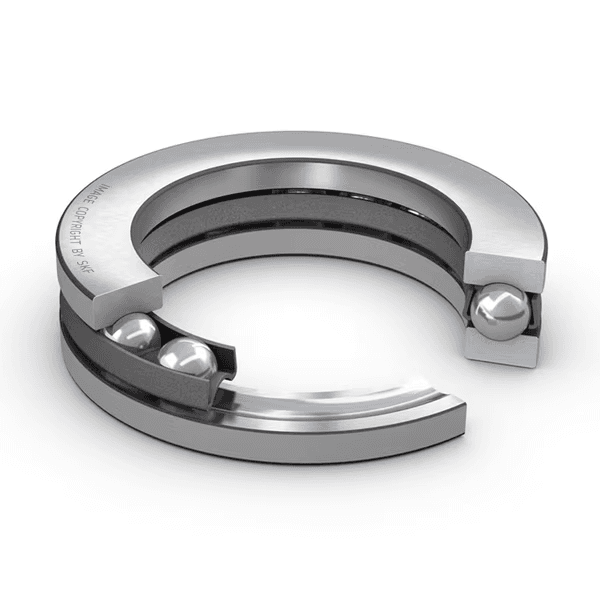

The SKF 51117 is a plain thrust ball bearing with no suffix, 85 × 110 × 19 mm (bore × OD × width).
The same specification comes one size down as 51116 (80 mm bore) and one size up as 51118 (90 mm bore). Parts from other brands with the same dimensions as the 51117 include FAG 51117, KOYO 51117, NSK 51117, NTN 51117; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| C | 44.9 kN | Basic dynamic load rating |
| C0 | 146 kN | Basic static load rating |
| nϑr | 3 000 r/min | Reference speed |
| nG | 4 300 r/min | Limiting speed |
| ≈m | 0.413 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 85 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| H | 19 mm | Height |
| B | 19 mm | Width (B) |
| Symbol | Value | Description |
|---|---|---|
| da | min. 100 mm | da |
| Da | max. 95 mm | Da |
| ra | max. 1 mm | ra |
| Code | Description |
|---|---|
| Axial load capability | Single row |
| Number of rows | 1 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 0.413 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Single direction thrust ball bearing
Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

FAG
51117
Thrust Ball Bearing
US$17.97
Excl. VAT
In stock (35)

KOYO
51117
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
51117
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NTN
51117
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
