  1. Home
  2. /Bearings
  3. /SKF 51209 Thrust Bearing
SKF

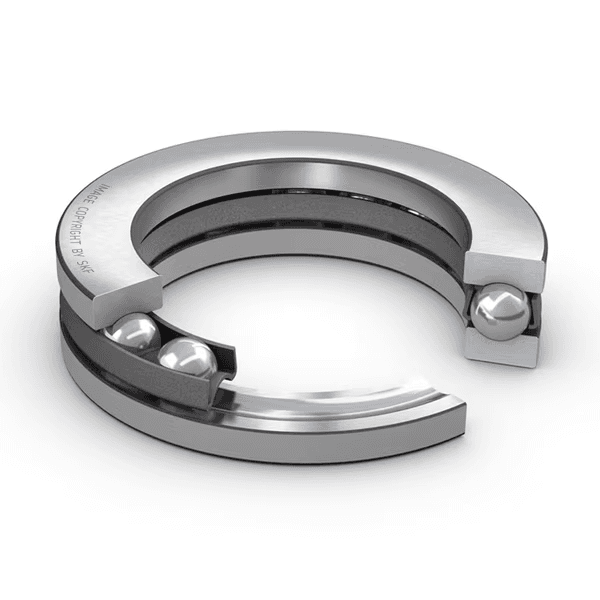

SKF 51209 SKF 51209 Thrust Bearing
  • SKF 51209 SKF 51209 Thrust Bearing

SKF

SKF 51209 Thrust Bearing Thrust Ball Bearing 45 × 73 × 20 mm

Single direction thrust ball bearing

Thrust Ball Bearing

RFQ

Estimated delivery: 28 Nov 2026 (domestic stock)

In stockEstimated delivery: 28 Nov 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SKY1NXTVKE
Category
Thrust Ball Bearing
Bore
45 mm
Outer Ø
73 mm
Width
20 mm

Overview

The SKF 51209 is a plain thrust ball bearing with no suffix, 45 × 73 × 20 mm (bore × OD × width).

The same specification comes one size down as 51208 (40 mm bore) and one size up as 51210 (50 mm bore). Parts from other brands with the same dimensions as the 51209 include FAG 51209, KOYO 51209, NSK 51209, NTN 51209; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
nϑr3600 r/minReference speed
nG5000 r/minLimiting speed
≈m0.288 kgWeight
C39 kNBasic Dynamic Load Rating (C)
C086.5 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d45 mmBore diameter
D73 mmOutside diameter
H20 mmHeight (H)
B20 mmWidth (B)

Product description

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Key features

  • ·Separable design facilitates mounting/dismounting and maintenance inspections
  • ·Interchangeable components
  • ·Ground bore of shaft washers enable interference fit

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

RFQ

Estimated delivery: 28 Nov 2026 (domestic stock)

Interchangeable alternatives to SKF 51209

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
