Single direction thrust ball bearing
Thrust Ball Bearing
RFQ
Estimated delivery: 9 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

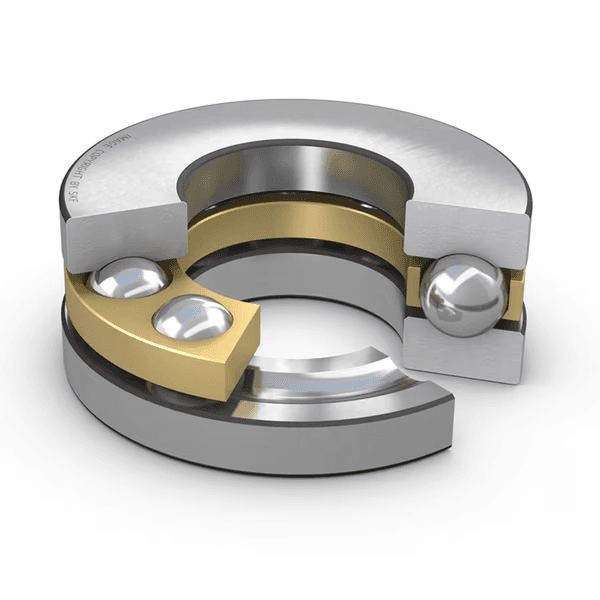

Single direction thrust ball bearing
Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
| Symbol | Value | Description |
|---|---|---|
| C | 216 kN | Basic dynamic load rating |
| C0 | 490 kN | Basic static load rating |
| reference_speed_rpm | 1 500 r/min | Reference speed |
| limiting_speed_rpm | 2 200 r/min | Limiting speed |
| Symbol | Value | Description |
|---|---|---|
| d | 65 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| H | 56 mm | Height |
| Symbol | Value | Description |
|---|---|---|
| da | min. 110 mm | da |
| Da | max. 95 mm | Da |
| ra | max. 2 mm | ra |
| Code | Description |
|---|---|
| 축방향 하중 역량 | Single row |
| 열 개수 | 1 |
| 케이지 | Machined brass |
| 하우징 와셔 유형 | Flat |
| 공차 클래스 | Normal |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 제품 순 중량 | 4.47 kg |
| eClass 코드 | 23-05-10-01 |
| UNSPSC 코드 | 31171507 |
