SKF
Double direction thrust ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

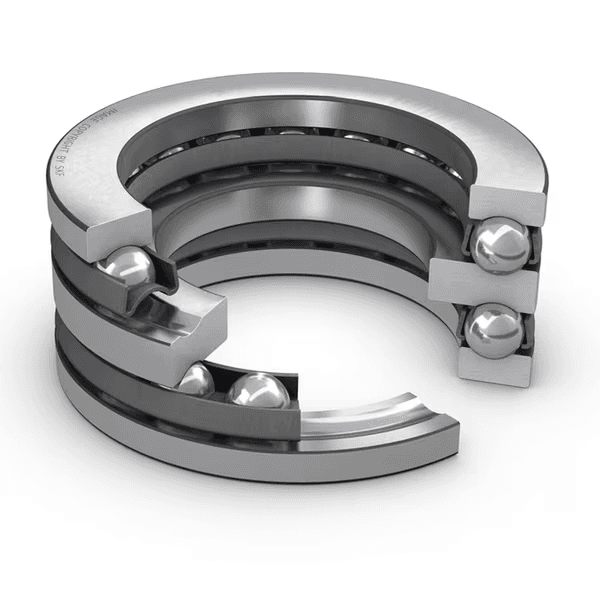

The SKF 52206 is a thrust ball bearing, bore 25 mm, outside diameter 52 mm.
Kovar lists 2 SKF variants in the 25×52 mm size; the closest to the 52206 are BSA205CGB. The 52206 weighs 0.239 kg, compared with 0.146 kg for the BSA205CGB.
| Symbol | Value | Description |
|---|---|---|
| C | 25.1 kN | Basic dynamic load rating |
| C0 | 51 kN | Basic static load rating |
| nϑr | 3 600 r/min | Reference speed |
| nG | 5 000 r/min | Limiting speed |
| ≈m | 0.239 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 25 mm | Bore diameter |
| D | 52 mm | Outside diameter |
| H | 29 mm | Height |
| Symbol | Value | Description |
|---|---|---|
| da | 30 mm | da |
| Da | max. 39 mm | Da |
| ra | max. 0.6 mm | ra |
| rb | max. 0.3 mm | rb |
| Code | Description |
|---|---|
| Axial load capability | Both directions |
| Number of rows | 2 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 0.239 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Double direction thrust ball bearing
Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
