SKF
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

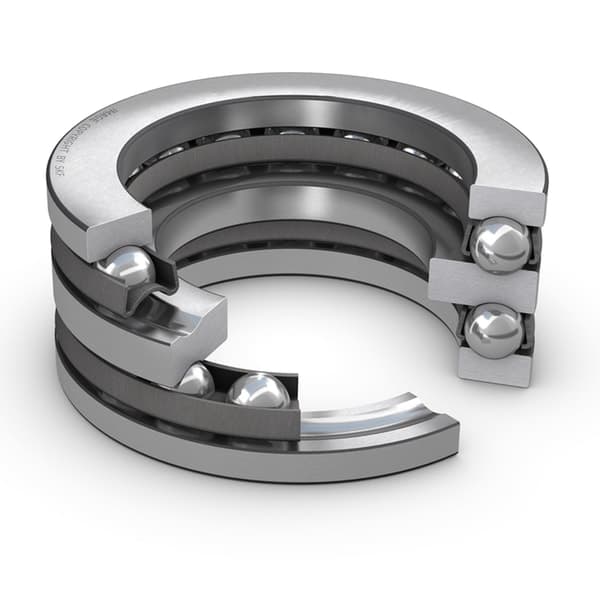

The SKF 52226 is a thrust ball bearing, bore 110 mm, outside diameter 190 mm.
Kovar lists 2 SKF variants in the 110×190 mm size; the closest to the 52226 are 53322M. Limiting speed is 1,500 rpm for the 52226 versus 1,600 rpm for the 53322M.
| Symbol | Value | Description |
|---|---|---|
| C | 182 kN | Basic dynamic load rating |
| C0 | 585 kN | Basic static load rating |
| nϑr | 1 100 r/min | Reference speed |
| nG | 1 500 r/min | Limiting speed |
| ≈m | 7.29 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 110 mm | Bore diameter |
| D | 190 mm | Outside diameter |
| H | 80 mm | Height |
| Symbol | Value | Description |
|---|---|---|
| da | 130 mm | da |
| Da | max. 154 mm | Da |
| ra | max. 1.5 mm | ra |
| rb | max. 1 mm | rb |
| Code | Description |
|---|---|
| Axial load capability | Both directions |
| Number of rows | 2 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 7.29 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Thrust ball bearing
Thrust ball bearings consist of balls and washer-shaped raceway rings and support axial loads only. Single-direction types take axial load in one direction, double-direction types in both; they do not carry radial load. They are used in machine tools, jacks and rotary tables.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
