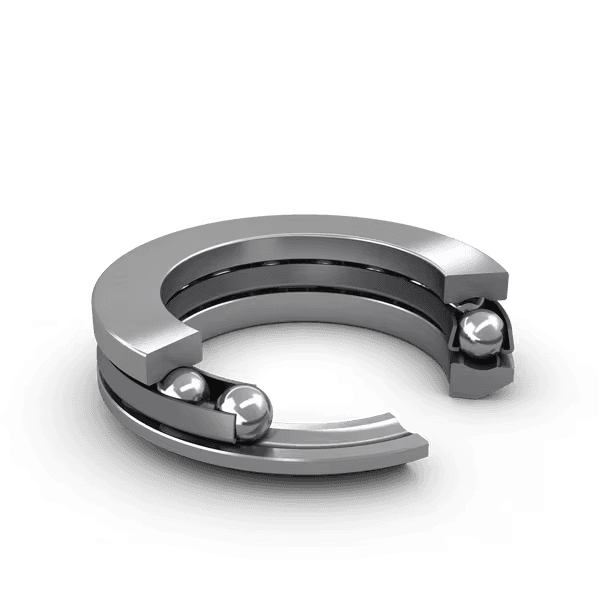

SKF 53307 Thrust Ball Bearing 35 × 68 × 25.6 mm

Single direction thrust ball bearing with sphered housing washer

Thrust Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Thrust Ball Bearing
Dimensions: 35x68x25.6mm

Overview

Single direction thrust ball bearing with sphered housing washer

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Key features

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enables interference fit
Sphered housing washers can accommodate initial misalignment

Typical applications

Vertical motors and pumps
Rotary tables
Screw jacks and lifting devices
Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Symbol	Value	Description
C	49.4 kN	Basic dynamic load rating
C0	96.5 kN	Basic static load rating
reference_speed_rpm	3 200 r/min	Reference speed
limiting_speed_rpm	4 500 r/min	Limiting speed

Symbol	Value	Description
d	35 mm	Bore diameter
D	68 mm	Outside diameter
H	25.6 mm	Height
r	56 mm	Alignment surface radius

Symbol	Value	Description
da	min. 55 mm	da
Da	max. 52 mm	Da
ra	max. 1 mm	ra

Separable design eases mounting/dismounting and maintenance inspection
Components can be replaced
Ground bore of shaft washer allows interference fit
Spherical housing washer accommodates initial misalignment

Code	Description
축방향 하중 역량	Single row
열 개수	1
케이지	Sheet metal
하우징 와셔 유형	구형
공차 클래스	Normal
소재, 베어링	Bearing steel
코팅	None
제품 순 중량	0.366 kg
eClass 코드	23-05-10-01
UNSPSC 코드	31171507

datasheet pdf download
