  1. Home
  2. /Bearings
  3. /SKF 53317 Thrust Ball Bearing
SKF

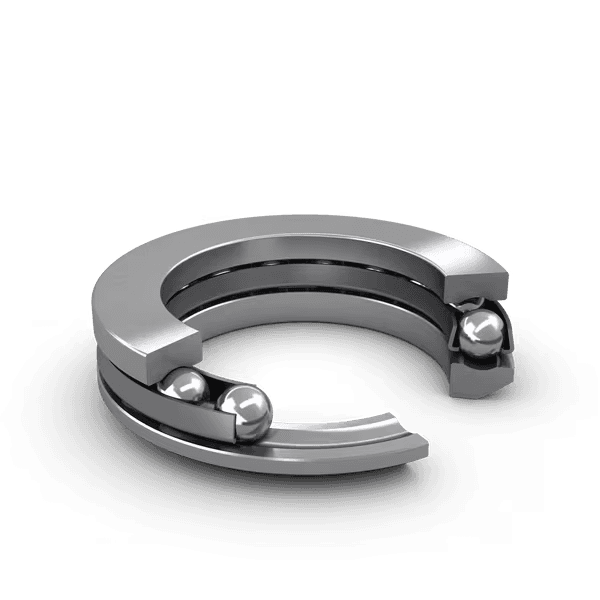

SKF 53317 SKF 53317 Thrust Ball Bearing
  • SKF 53317 SKF 53317 Thrust Ball Bearing

SKF

SKF 53317 Thrust Ball Bearing 85 × 150 × 53.1 mm

Single direction thrust ball bearing with sphered housing washer

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLPQ6QYQV9
Category
Thrust Ball Bearing
Bore
85 mm

Overview

The SKF 53317 is a thrust ball bearing, bore 85 mm, outside diameter 150 mm.

Kovar lists 2 SKF variants in the 85×150 mm size; the closest to the 53317 are 52220. Limiting speed is 2,000 rpm for the 53317 versus 1,800 rpm for the 52220.

Main Dimensions & Performance

SymbolValueDescription
C174 kNBasic dynamic load rating
C0405 kNBasic static load rating
nϑr1 500 r/minReference speed
nG2 000 r/minLimiting speed
≈m3.45 kgWeight

Dimensions

SymbolValueDescription
d85 mmBore diameter
D150 mmOutside diameter
H53.1 mmHeight
r112 mmAlignment surface radius

Mounting Dimensions

SymbolValueDescription
damin. 124 mmda
Damax. 115 mmDa
ramax. 1 mmra

Related Parts

CodeDescription
Axial load capabilitySingle row
Number of rows1
CageSheet metal
하우징 와셔 유형구형
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
Net weight3.45 kg
eClass code23-05-10-01
UNSPSC code31171507

Characteristics

  • Separable design eases mounting/dismounting and maintenance inspection
  • Components can be replaced
  • Ground bore of shaft washer allows interference fit
  • Spherical housing washer accommodates initial misalignment

Product description

Single direction thrust ball bearing with sphered housing washer

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Key features

  • ·Separable design facilitates mounting/dismounting and maintenance inspections
  • ·Interchangeable components
  • ·Ground bore of shaft washers enables interference fit
  • ·Sphered housing washers can accommodate initial misalignment

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download
