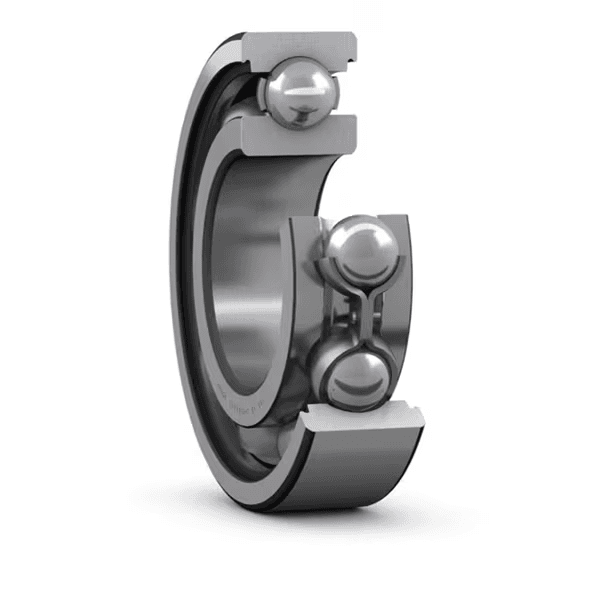

SKF 6006 -2RS1NR Deep Groove Ball Bearing 30 × 55 × 13 mm

Deep Groove Ball Bearing

RFQ

Estimated delivery: 9 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 9 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Deep Groove Ball Bearing
Dimensions: 30x55x13mm

Overview

Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Key features

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Typical applications

Electric motors and generators
Pumps, fans, and blowers
Gearboxes and reducers
Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Symbol	Value	Description
C	13.8 kN	Basic dynamic load rating
C0	8.3 kN	Basic static load rating
limiting_speed_rpm	8 000 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	30 mm	Bore diameter
D	55 mm	Outside diameter
B	13 mm	Width

Snap ring eases axial location of the bearing in the housing
Integrated sealing extends bearing life
Typical advantages of a single-row deep groove ball bearing

Code	Description
필링 슬롯	None
열 개수	1
로케이팅 기능, 베어링 외륜	Snap ring (mounted)
보어 유형	Cylindrical
케이지	Sheet metal
일치된 배열	No
경방향 내부틈새	CN
소재, 베어링	Bearing steel
코팅	None
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Grease
재윤활 기능	None
제품 순 중량	0.119 kg
eClass 코드	23-05-08-01
UNSPSC 코드	31171504

datasheet pdf download
