SKF
Deep Groove Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

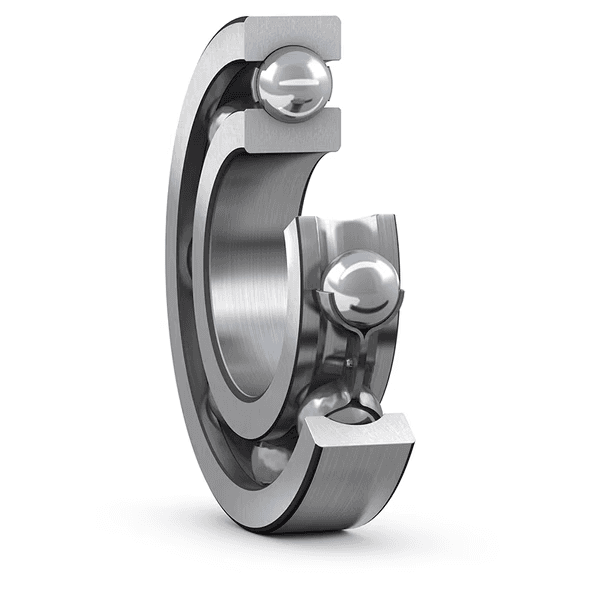

The SKF 61848 is a plain deep groove ball bearing with no suffix, 240 × 300 × 28 mm (bore × OD × width).
Kovar lists 3 SKF variants in the 240×300×28 mm size; the closest to the 61848 are 61848MA, 61848MA/C3 (internal clearance C3). Limiting speed is 2,600 rpm for the 61848 versus 3,400 rpm for the 61848MA.
The same specification comes one size down as 61844 (220 mm bore) and one size up as 61852 (260 mm bore). Parts from other brands with the same dimensions as the 61848 include FAG 61848-M, IBC 61848, SLF 61848MA; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| nϑr | 4000 r/min | Reference speed |
| nG | 2600 r/min | Limiting speed |
| ≈m | 3.84 kg | Weight |
| C | 108 kN | Basic Dynamic Load Rating (C) |
| C0 | 150 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 240 mm | Bore diameter |
| D | 300 mm | Outside diameter |
| B | 28 mm | Width |
Deep groove ball bearing
Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
