  1. Home
  2. /Bearings
  3. /SKF 61908/C3 Deep Groove Ball Bearing
SKF

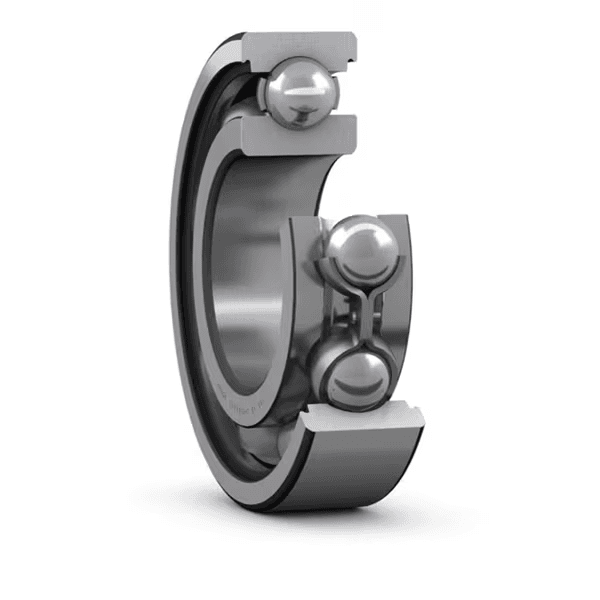

SKF 61908/C3 SKF 61908/C3 Deep Groove Ball Bearing
  • SKF 61908/C3 SKF 61908/C3 Deep Groove Ball Bearing

SKF

SKF 61908/C3 Deep Groove Ball Bearing 40 × 62 × 12 mm

Deep Groove Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXYH6FG6TY
Category
Deep Groove Ball Bearing
Bore
40 mm

Overview

The SKF 61908/C3 is a deep groove ball bearing with internal clearance C3 (greater than normal), 40 × 62 × 12 mm (bore × OD × width).

Kovar lists 6 SKF variants in the 40×62×12 mm size; the closest to the 61908/C3 are 61908 (plain), 61908-2RS1 (contact seals (NBR) on both sides), 61908-2RS1 619082RS1 (contact seals (NBR) on both sides). Limiting speed is 14,000 rpm for the 61908/C3 versus 6,000 rpm for the 61908-2RS1.

The same specification comes one size down as 61906/C3 (30 mm bore) and one size up as 61910/C3 (50 mm bore). Parts from other brands with the same dimensions as the 61908/C3 include FAG 61908-C3, IBC 61908, RBC 9308K, TIMKEN 61908 -ZZ; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C13.8 kNBasic dynamic load rating
C09.3 kNBasic static load rating
nϑr24 000 r/minReference speed
nG14 000 r/minLimiting speed
≈m0.111 kgWeight

Dimensions

SymbolValueDescription
d40 mmBore diameter
D62 mmOutside diameter
B12 mmWidth

Related Parts

CodeDescription
Filling slotNone
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceC3
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight0.111 kg
eClass code23-05-08-01
UNSPSC code31171504

Characteristics

  • Simple, versatile and robust design
  • Low friction
  • High-speed performance
  • Accommodates radial and axial loads in both directions
  • Requires almost no maintenance

Product description

Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Key features

  • ·Simple, versatile and robust design
  • ·Low friction
  • ·High-speed capability
  • ·Accommodate radial and axial loads in both directions
  • ·Require little maintenance

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Datasheet

📄datasheet pdf download

Part number formats

All of these refer to this part. Hyphens, slashes and spaces are only a writing style.

  • 61908C3
  • 61908 C3
