| Symbol | Value | Description |
|---|---|---|
| C0 | 19 kN | Basic static load rating |
| limiting_speed_rpm | 150 r/min | Limiting speed |
| max_operating_temp_c | 350 °C | Maximum operating temperature |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

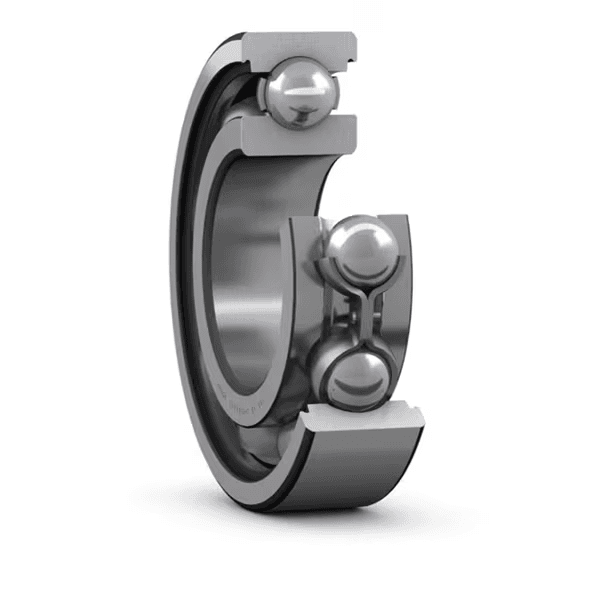

SKF 6208 -2Z/VA228 Deep Groove Ball Bearing 40 × 80 × 18 mm
Deep Groove Ball Bearing
RFQ
Estimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Deep Groove Ball Bearing
- Dimensions
- 40x80x18mm
Overview
Deep groove ball bearing
Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Key features
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Typical applications
- Electric motors and generators
- Pumps, fans, and blowers
- Gearboxes and reducers
- Conveyors and general industrial machinery
Selection guidance
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
| Symbol | Value | Description |
|---|---|---|
| d | 40 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| B | 18 mm | Width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 52.5 mm | da |
| Da | max. 73 mm | Da |
| ra | max. 1 mm | ra |
- Optimized for high-temperature operation up to 350°C (660°F)
- 해당 ISO 치수의 그리스 윤활 베어링으로 쉽게 교체됨
- Improved reliability
- Reduced complexity and environmental impact
- Integrated sealing extends bearing life
- Typical advantages of a single-row deep groove ball bearing
| Code | Description |
|---|---|
| 필링 슬롯 | None |
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | None |
| 보어 유형 | Cylindrical |
| 케이지 | Non-metallic |
| 일치된 배열 | No |
| 경방향 내부틈새 | Multiples of C5 |
| 소재, 베어링 | High-temperature steel |
| 코팅 | Coated |
| 씰링 | Shield on both sides |
| 씰링 유형 | Non-contact |
| 윤활유 | Solid lubricant |
| 재윤활 기능 | None |
| 제품 순 중량 | 0.367 kg |
| eClass 코드 | 23-05-90-90 |
| UNSPSC 코드 | 31171504 |
