SKF SKF 6212-2Z/C3WT
  • SKF SKF 6212-2Z/C3WT

SKF

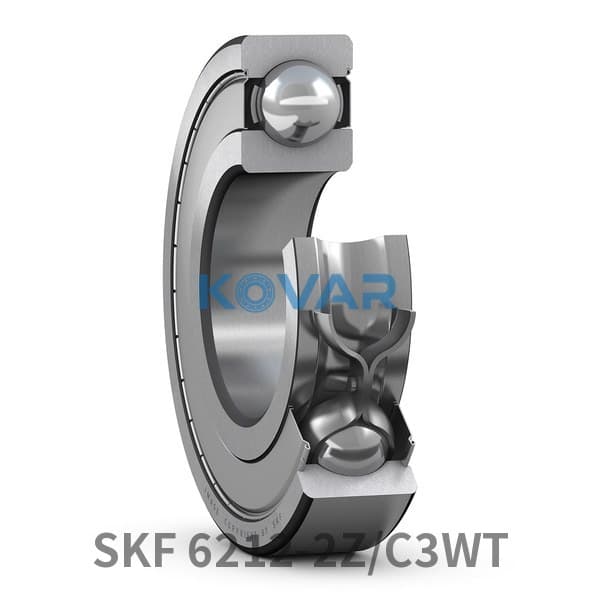

SKF 6212-2Z/C3WT Deep Groove Ball Bearing 60 × 110 × 22 mm

Deep Groove Ball Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLAN68XYSH3E
Category
Deep Groove Ball Bearing
Bore
60 mm
Outer Ø
110 mm
Width
22 mm

Overview

Deep groove ball bearing

Deep groove ball bearings are the most widely used, versatile bearing type. With deep raceway grooves in both rings, they accommodate radial loads and axial loads in both directions simultaneously. Their simple design enables low friction and high-speed operation, and seal/shield variants retain lubricant and exclude contamination. They serve as standard components in motors, pumps, gear units and a wide range of equipment.

Key features

  • ·Accommodate radial and bidirectional axial loads
  • ·Low friction, high-speed capable
  • ·Seal/shield options reduce maintenance
  • ·Highly versatile and interchangeable

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

SymbolValueDescription
≈m0.789Weight
nϑr13000Reference speed
nG6300Limiting speed
SymbolValueDescription
d60Bore diameter
D110Outside diameter
B22Width
