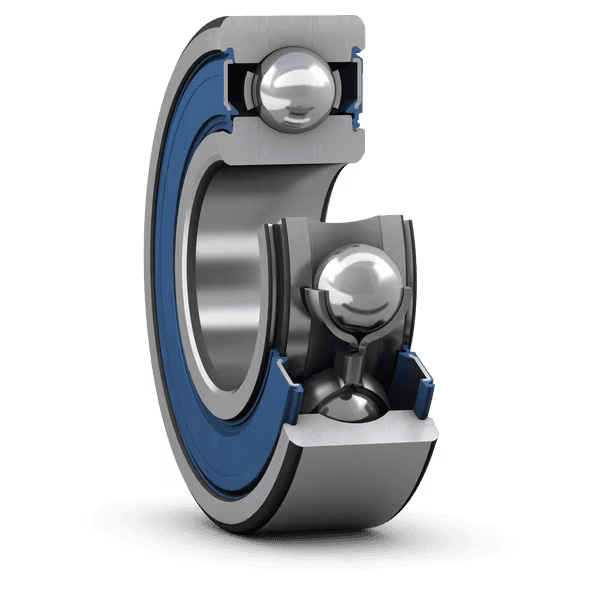

SKF 6305-2RSH/VA947 Deep Groove Ball Bearing 25 × 62 × 17 mm

SKF Food line deep groove ball bearing with seals

Deep Groove Ball Bearing

RFQ

Out of stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Deep Groove Ball Bearing
Dimensions: 25x62x17mm

Overview

SKF Food line deep groove ball bearing with seals

SKF Food line deep groove ball bearings are compliant with food safety regulations. Designed with food grade seals and grease, they enhance food safety, increase reliability and support sustainable development in non-corrosive environments (VA947). Single row deep groove ball bearings with seals are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds.

Key features

Compliant with food safety regulations
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Typical applications

Electric motors and generators
Pumps, fans, and blowers
Gearboxes and reducers
Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Symbol	Value	Description
C	23.4 kN	Basic dynamic load rating
C0	11.6 kN	Basic static load rating
limiting_speed_rpm	7 500 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	25 mm	Bore diameter
D	62 mm	Outside diameter
B	17 mm	Width

Symbol	Value	Description
da	max. 33 mm	da
Da	max. 55 mm	Da
ra	max. 1 mm	ra

Complies with food safety regulations
Simple, versatile and robust design
Low friction
High-speed performance
Accommodates radial and axial loads in both directions
Requires almost no maintenance

Code	Description
필링 슬롯	None
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
일치된 배열	No
경방향 내부틈새	CN
소재, 베어링	Bearing steel
코팅	None
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Food-grade oil
재윤활 기능	None
제품 순 중량	0.234 kg
eClass 코드	23-05-08-01
UNSPSC 코드	31171504
