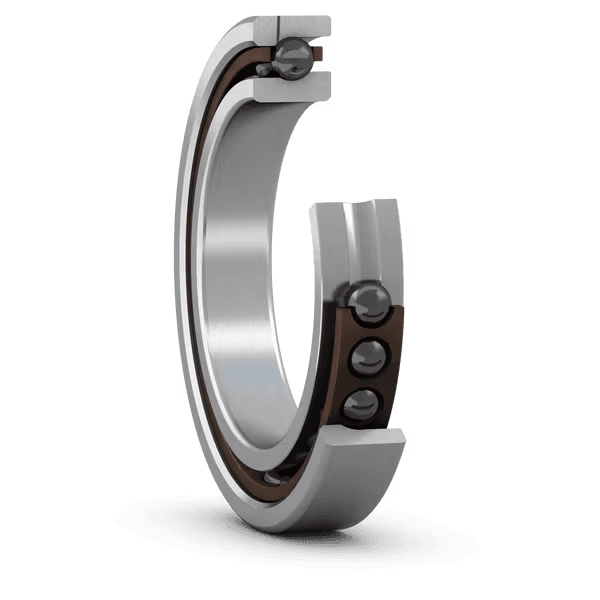

SKF 7014 ACEGA/HCP4AH1 Angular Contact Ball Bearing 70 × 110 × 20 mm

Overview

Super-precision, high-speed E design, universally matchable single row angular contact ball bearing suitable for direct oil-air lubrication

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes in their outer rings.

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
