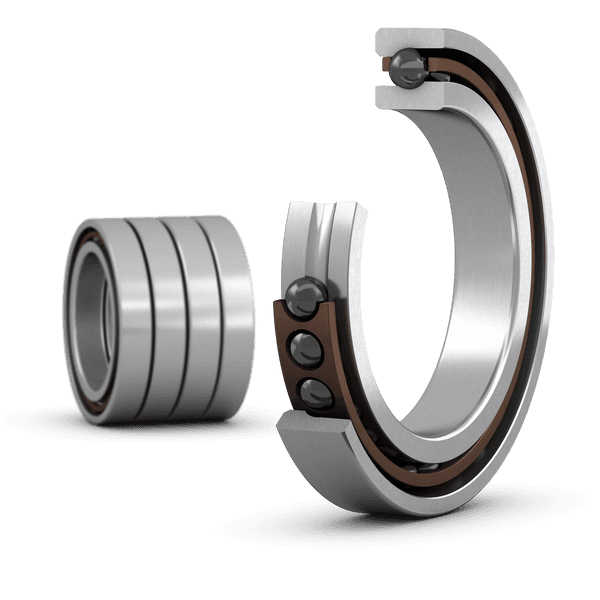

SKF 7014 CE/HCP4AQBCA Angular Contact Ball Bearing 70 × 110 × 80 mm

Overview

Matched set of four super-precision, high-speed E design, single row angular contact ball bearings

These sets of four matched super-precision angular contact ball bearings are available as universally matchable bearings or in preconfigured arrangements. Sets of four bearings arranged in tandem need to be mounted against a single bearing, or a set of bearings in tandem, to achieve the desired preload. All the other arrangements are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
