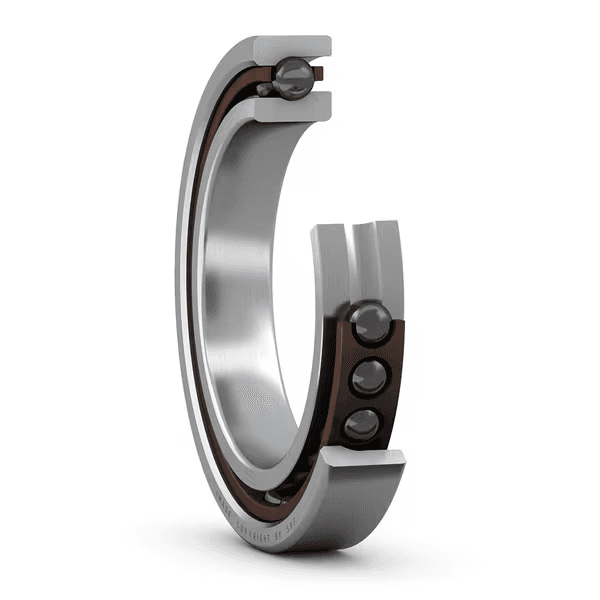

SKF 7016 ACEGA/HCP4A Angular Contact Ball Bearing 80 × 125 × 22 mm

Overview

Super-precision, high-speed E design, universally matchable single row angular contact ball bearing

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
