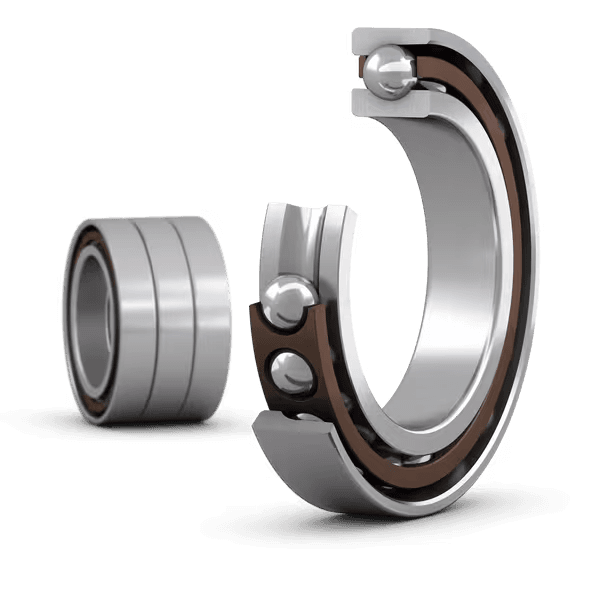

SKF 7020 ACD/P4ATBTB Angular Contact Ball Bearing 100 × 150 × 72 mm

Overview

Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings

These sets of three matched super-precision angular contact ball bearings are available as universally matchable bearings or as preconfigured arrangements. Sets arranged in back-to-back and tandem, or face-to-face and tandem, are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. Sets of three bearings paired in tandem need to be mounted against a single bearing, or another set of bearings in tandem, to achieve the desired preload. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
