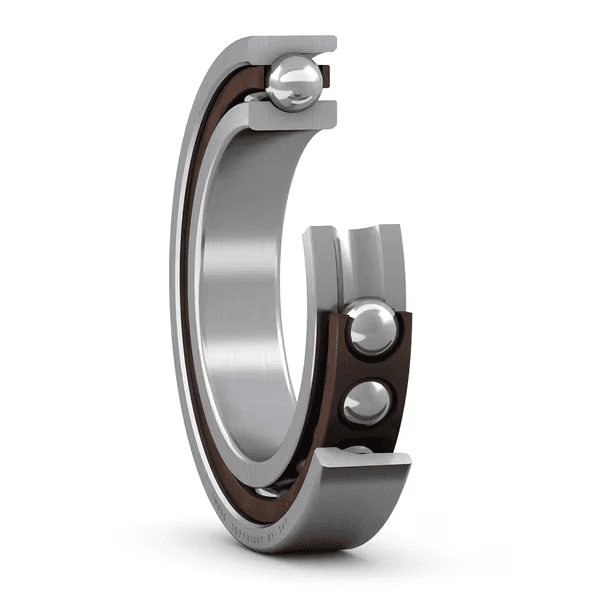

SKF 7022 ACD/P4A Angular Contact Ball Bearing 110 × 170 × 28 mm

Super-precision, high-capacity, single row angular contact ball bearing

Angular Contact Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Angular Contact Ball Bearing
Dimensions: 110x170x28mm

Overview

Super-precision, high-capacity, single row angular contact ball bearing

These super-precision, high-capacity, single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

Key features

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness

Typical applications

Machine tool spindles and support shafts
Pumps and compressors
High-speed motors
Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Symbol	Value	Description
C	104 kN	Basic dynamic load rating
C0	104 kN	Basic static load rating
grease_speed_rpm	7 000 r/min	Attainable grease lubrication speed
oil_air_speed_rpm	11 000 r/min	Attainable oil-air lubrication speed

Symbol	Value	Description
d	110 mm	Bore diameter
D	170 mm	Outside diameter
B	28 mm	Width
α	25 °	Contact angle

Symbol	Value	Description
da	min. 119 mm	da
db	min. 119 mm	db
Da	max. 161 mm	Da
Db	max. 165 mm	Db
ra	max. 2 mm	ra
rb	max. 1 mm	rb
dn	132.6 mm	dn

Very high running accuracy
Very high load capacity
Relatively high speed and rigidity

Code	Description
접촉 유형	Normal contact (four-point contact)
열 개수	1
링 유형	One-piece inner and outer ring
설계	High capacity D
유니버설 매칭 베어링	No
일치된 배열	No
일치된 조건(축방향 틈새/예압)	Not applicable
공차 클래스	P4A
소재, 베어링	Bearing steel
코팅	None
씰링	None
윤활유	None
제품 순 중량	1.93 kg
eClass 코드	23-05-08-04
UNSPSC 코드	31171531
