  1. Home
  2. /Bearings
  3. /SKF 7040 Angular Contact Ball Bearing
SKF

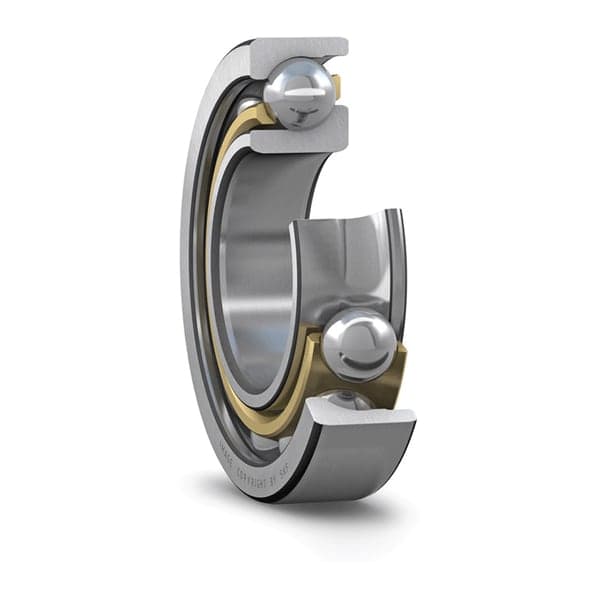

SKF 7040 SKF 7040 Angular Contact Ball Bearing
  • SKF 7040 SKF 7040 Angular Contact Ball Bearing

SKF

SKF 7040 Angular Contact Ball Bearing 200 × 310 × 51 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TL9ER4AX8K
Category
Angular Contact Ball Bearing
Bore
200 mm

Overview

The SKF 7040 is a plain angular contact ball bearing with no suffix, 200 × 310 × 51 mm (bore × OD × width).

Kovar lists 7 SKF variants in the 200×310×51 mm size; the closest to the 7040 are 7040ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7040ACDGA/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Tolerance class P4A), 7040ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A). The 7040 weighs 13.1 kg, compared with 12.1 kg for the 7040ACD/P4A.

The same specification also comes in an adjacent size: 7028 (140 mm bore). Parts from other brands with the same dimensions as the 7040 include FAG 7040-MP, KOYO 7040, NSK 7040, NTN 7040; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C225 kNBasic dynamic load rating
C0290 kNBasic static load rating
nϑr2 200 r/minReference speed
nG2 200 r/minLimiting speed
≈m13.1 kgWeight

Dimensions

SymbolValueDescription
d200 mmBore diameter
D310 mmOutside diameter
B51 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 234 mmda
Damax. 285 mmDa
Dbmax. 333 mmDb
ramax. 2.5 mmra
rbmax. 1.1 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageMachined brass
Matched arrangementNo
Universally matchable bearingYes
Axial internal clearanceNot applicable
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight13.1 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 7040, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
