SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

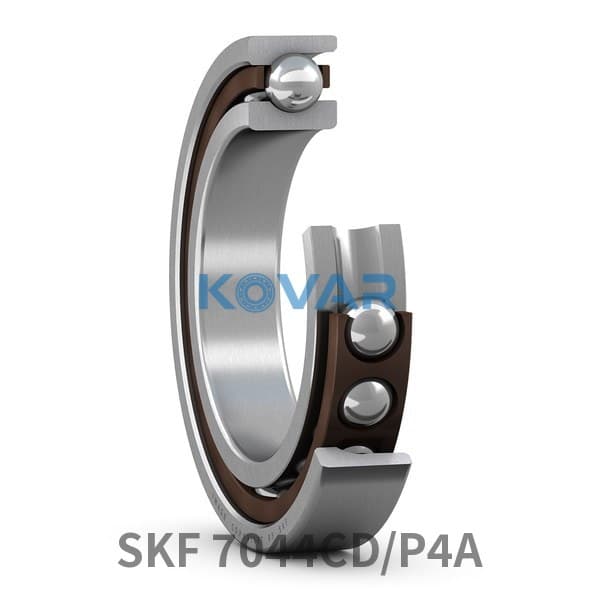

SKF 7044CD/P4A: an angular contact ball bearing with 15° contact angle · high-capacity D design (CD) and tolerance class P4A (P4 dimensions · running accuracy better than P4) measuring 220 × 340 × 56 mm (bore × OD × width).
Kovar lists 5 SKF variants in the 220×340×56 mm size; the closest to the 7044CD/P4A are 7044CDGA/P4A (15° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Tolerance class P4A), 7044ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7044ACDGA/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Tolerance class P4A).
The same specification comes one size down as 7040CD/P4A (200 mm bore) and one size up as 7048CD/P4A (240 mm bore). Looking for the 7044CD/P4A size from another brand? Options include FAG 7044-MP-UA, NSK 7044A, SLF 7044B.MP (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 338 kN | Basic dynamic load rating |
| C0 | 455 kN | Basic static load rating |
| 4 000 r/min | Attainable grease lubrication speed | |
| 6 000 r/min | Attainable oil-air lubrication speed | |
| ≈m | 15.8 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 220 mm | Bore diameter |
| D | 340 mm | Outside diameter |
| B | 56 mm | Width |
| α | 15 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | min. 233 mm | da |
| db | min. 233 mm | db |
| Da | max. 327 mm | Da |
| Db | max. 334 mm | Db |
| ra | max. 2.5 mm | ra |
| rb | max. 1.5 mm | rb |
| dn | 267.1 mm | dn |
| Code | Description |
|---|---|
| Contact type | Normal contact (four-point contact) |
| Number of rows | 1 |
| Ring type | One-piece inner and outer ring |
| Design | High capacity D |
| Universally matchable bearing | No |
| Matched arrangement | No |
| Matched condition (axial clearance / preload) | Not applicable |
| Tolerance class | P4A |
| Material, bearing | Bearing steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Net weight | 15.8 kg |
| eClass code | 23-05-08-04 |
| UNSPSC code | 31171531 |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
All of these refer to this part. Hyphens, slashes and spaces are only a writing style.
7044CDP4A7044CD P4ARFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
