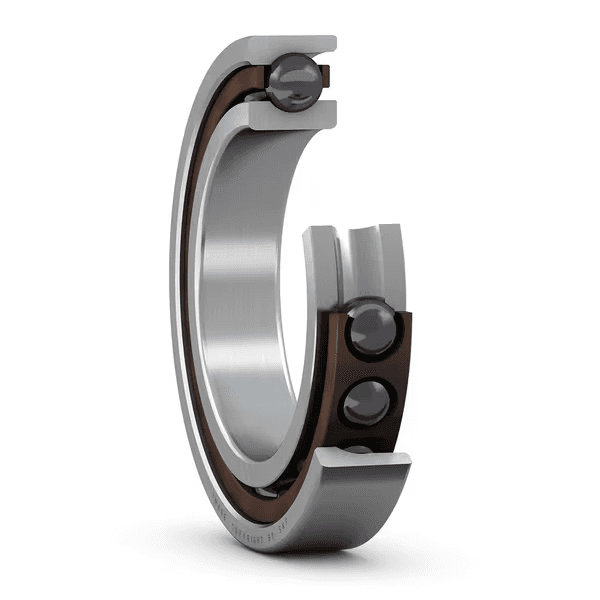

SKF 71800 CDGA/HCP4 Angular Contact Ball Bearing 10 × 19 × 5 mm

Overview

Super-precision, high-capacity, universally matchable single row angular contact ball bearing

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
