SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

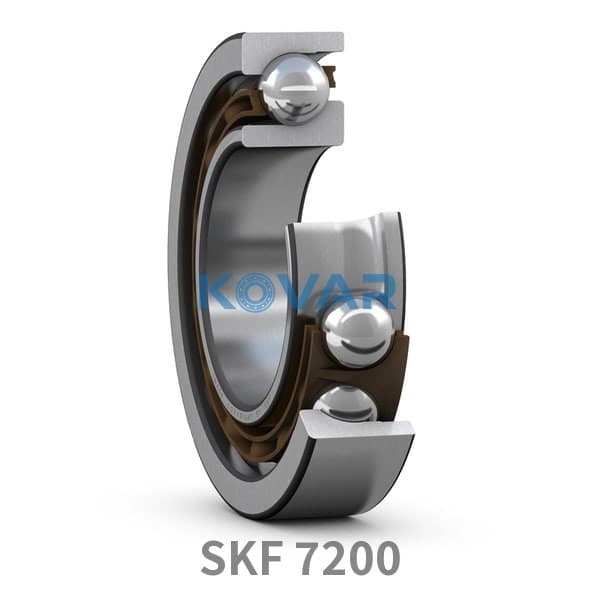

The SKF 7200 is a plain angular contact ball bearing with no suffix, 10 × 30 × 9 mm (bore × OD × width).
Kovar lists 10 SKF variants in the 10×30×9 mm size; the closest to the 7200 are 7200ACD/HCP4A (25° contact angle, high-capacity D design, Ceramic balls, Tolerance class P4A), 7200ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7200ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A). The 7200 weighs 0.0298 kg, compared with 0.026 kg for the 7200ACD/HCP4A.
The same specification also comes in an adjacent size: 7201 (12 mm bore). Parts from other brands with the same dimensions as the 7200 include FAG 7200-B-XL-JP, IBC 7200.BE, KOYO 7200, NSK 7200; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.0298 | Weight |
| nϑr | 32000 | Reference speed |
| nG | 30000 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 7.02 kN | Basic Dynamic Load Rating (C) |
| C0 | 3.35 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 10 | Bore diameter |
| D | 30 | Outside diameter |
| B | 9 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

FAG
7200-B-XL-JP
Angular Contact Ball Bearing
US$8.17
Excl. VAT
In stock (20)

IBC
7200.BE
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

KOYO
7200
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
7200
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NTN
7200
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
7200ACDGB/P4A
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

FAG
7200-B-XL-2RS-TVP
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

IBC
7200.C
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.
Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.
