EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

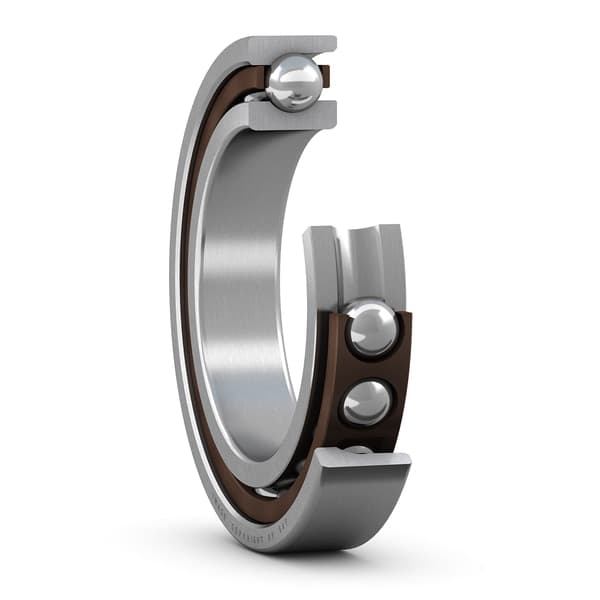

The SKF 7202 is a plain angular contact ball bearing with no suffix, 15 × 35 × 11 mm (bore × OD × width).
Kovar lists 20 SKF variants in the 15×35×11 mm size; the closest to the 7202 are 7202ACD/HCP4A (25° contact angle, high-capacity D design, Ceramic balls, Tolerance class P4A), 7202ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7202ACDGA/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Ceramic balls, Tolerance class P4A). The 7202 weighs 0.043 kg, compared with 0.036 kg for the 7202ACD/HCP4A.
The same specification comes one size down as 7201 (12 mm bore) and one size up as 7203 (17 mm bore). Parts from other brands with the same dimensions as the 7202 include FAG 7202-B-XL-JP, IBC 7202.BE, KOYO 7202, NSK 7202; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.043 kg | Weight |
| α | 25 ° | Contact Angle (α) |
| C | 7.15 kN | Basic Dynamic Load Rating (C) |
| C0 | 3.2 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 15 | Bore diameter |
| D | 35 | Outside diameter |
| B | 11 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
