SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

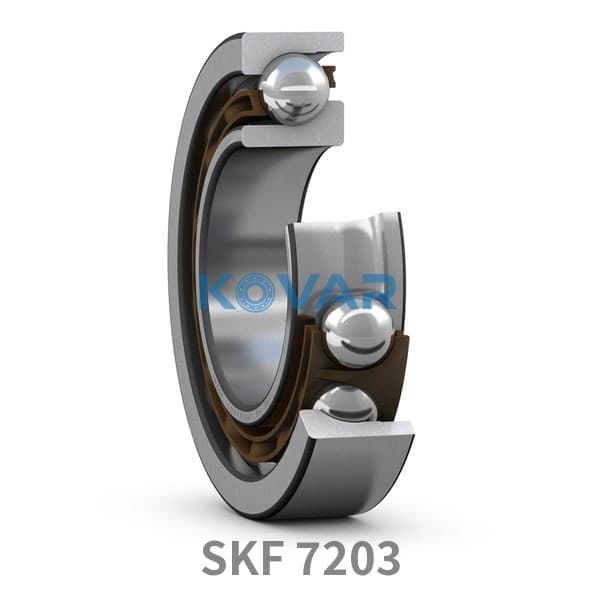

SKF 7203: a plain angular contact ball bearing with no suffix measuring 17 × 40 × 12 mm (bore × OD × width).
Kovar lists 17 SKF variants in the 17×40×12 mm size; the closest to the 7203 are 7203ACD/HCP4A (25° contact angle, high-capacity D design, Ceramic balls, Tolerance class P4A), 7203ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7203ACDGA/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Ceramic balls, Tolerance class P4A). The 7203 weighs 0.064 kg, compared with 0.054 kg for the 7203ACD/HCP4A.
The same specification comes one size down as 7202 (15 mm bore) and one size up as 7204 (20 mm bore). Looking for the 7203 size from another brand? Options include FAG 7203 -B-MP, IBC 7203.BE, KOYO 7203, NSK 7203 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.064 kg | Weight |
| nϑr | 22000 | Reference speed |
| nG | 20000 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 10.4 kN | Basic Dynamic Load Rating (C) |
| C0 | 5.5 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 17 | Bore diameter |
| D | 40 | Outside diameter |
| B | 12 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
